RGH35HA Roller Guide Block
RGH35HA Roller Guide Block

Linear Guide Rail And Block

Product Introduction

The RGH35HA linear guide block is a precision roller-type linear motion component built for applications that demand high rigidity and heavy load capacity. Its four rows of cylindrical rollers arranged at a 45-degree contact angle deliver significantly higher stiffness and load-bearing performance than conventional ball-type guides in a compact profile. Designed to run on RGR35 roller guide rails, this RGH35HA roller guide block ensures smooth, accurate linear motion with long service life, making it a dependable choice for CNC machine tools, gantry systems, and heavy-duty automation equipment.
4-row roller design, 45° contact – Four rows of cylindrical rollers at a 45-degree contact angle provide higher rigidity and load capacity than ball-type guides of the same size.
Heavy-load linear motion – Rated for heavy-duty machining and transfer applications where ball guides deflect under load.
High rigidity for CNC machining – Minimal elastic deformation under cutting force keeps the machine tool accurate.
Precision-ground, hardened raceways – Extended service life and consistent accuracy across long duty cycles.
Compact square block profile – Fits existing RGR35 roller rail layouts; direct RGH35HA-type replacement.
Smooth, precise movement – Roller contact with precision-ground surfaces supports stable, low-vibration feed motion.
Flexible sourcing – Single block or full rail-and-block kits; custom rail lengths available.
OEM / private label support – Packaging, branding, and batch QC per your requirements
Get a Quote

Core Product Features

Ultra Compact & Lightweight Design

Narrow 7mm rail profile, ultra-small cross-section structure, greatly saving internal installation space of mini machines; low self-weight reduces equipment moving load, ideal for portable and mini precision devices.

4-Point Gothic Arch Contact, Equal Load in 4 Directions

Adopts 45° gothic arc raceway & 4-row recirculating ball structure, evenly bears radial, reverse radial, horizontal and overturning torque loads. Higher rigidity than 2-row miniature guides, stable motion under complex offset loads without jitter.

Built-In Ball Retainer, Interchangeable Structure

Integrated micro steel ball retainer prevents balls falling off when disassembling the block from rail, convenient for installation, maintenance and replacement. Same precision grade rails & blocks can be freely matched, no need to pair as original sets, greatly reduce spare parts inventory cost.

Ultra-Low Friction, Smooth & Low Noise Movement

Superfinishing grinding on rail raceway surface, friction coefficient ≤0.003; rolling friction instead of sliding friction, low driving force, high-speed stable operation, running noise ≤45dB, suitable for silent precision testing equipment.

Wide Application Fields

CNC machine tools – machining centers, lathes, grinders, and milling machines requiring high cutting rigidity.
Gantry & portal machines – gantry machining centers and large-format CNC where heavy moving masses demand stiff guidance.
Heavy-duty automation & robotics – robotic transfer units, pallet changers, and high-load handling systems.
Laser cutting & welding equipment – precise, rigid linear axes for beam delivery and workpiece positioning.
Industrial transfer & press lines – reciprocating slides under repeated heavy loads.
Precision measurement & inspection machines – applications where motion accuracy must be maintained over long travel.

3D Printing & Desktop CNC Equipment

Cartesian 3D printer X/Y/Z axis motion, mini engraving machine, laser marking small sliding platform, stable high-speed printing & engraving without layer deviation.

Medical Diagnostic Instruments

Biochemical analyzer sample rack slide, ultrasound probe moving module, micro surgical robot end effector, blood testing equipment, stainless steel version meets medical anti-rust clean standards.

Precision Measuring & Optical Instruments

Coordinate measuring machine (CMM) micro probe axis, laser scanner, microscope objective moving platform, optical lens adjustment slide, guarantee ultra-stable detection accuracy.

Semiconductor & Electronic Automation

Wafer inspection stages, IC chip packaging manipulator, SMT mini placement head slide, AOI optical detection equipment, PCB micro cutting machines, support micron-level component assembly.

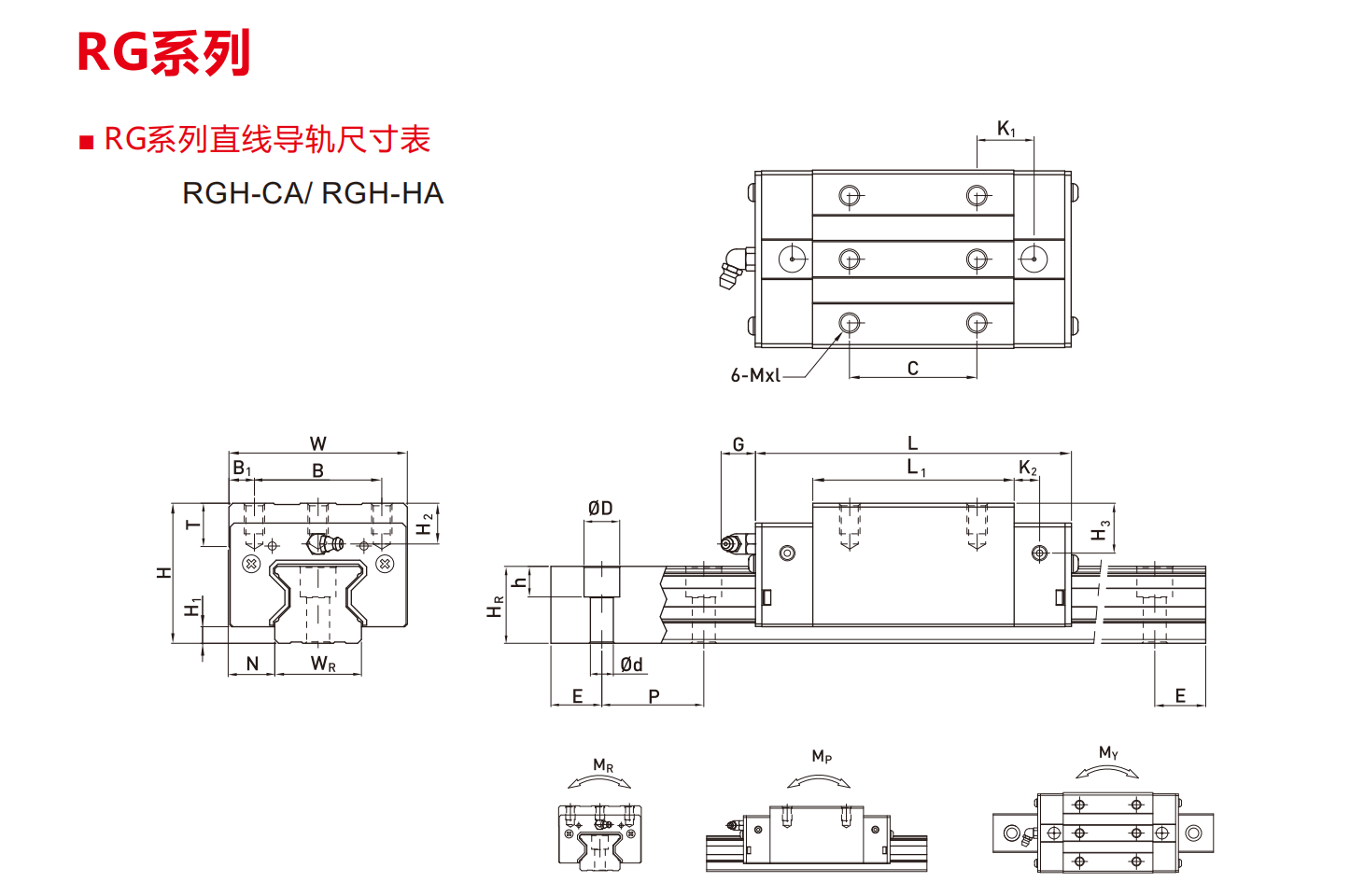

RGH roller guide rail and block

Product Parameter

Model Assambly Dimention
(mm)		 Block Dimention (mm) Rail Dimention (mm) Blot Dynamic load rating Static load rating  Allowable static moment  Block weight Rail weight
H H₁ N W B B₁ C L₁ L K₁ K₂ G M*l T H₂ H₃ Wᴿ Hᴿ D h d P E mm C(kN) C₀(kN) Mᴿ(kN·m) Mₚ(kN·m) Mᵧ(kN·m) kg kg/m
RGH15CA 28 4 9.5 34 26 4 26 45 68 13.4 4.7 5.3 M4×8 6 7.6 10.1 15 16.5 7.5 5.7 4.5 30 20 M4×16 11.3 24 0.311 0.173 0.173 0.2 1.8
RGH20CA 34 5 12 44 32 6 36 57.5 86 15.8 6 5.3 M5×8 8 8.3 8.3 20 21 9.5 8.5 6 30 20 M5×20 21.3 46.7 0.647 0.46 0.46 0.4 2.76
RGH20HA 34 5 12 44 32 6 50 77.5 106 18.8 6 5.3 M5×8 8 8.3 8.3 20 21 9.5 8.5 6 30 20 M5×20 26.9 63 0.872 0.837 0.837 0.53 2.76
RGH25CA 40 5.5 12.5 48 35 6.5 35 64.5 97.9 20.75 7.25 12 M6×8 8 9.5 10.2 23 23.6 11 9 7 30 20 M6×20 27.7 57.1 0.758 0.605 0.605 0.61 3.08
RGH25HA 40 5.5 12.5 48 35 6.5 50 81 114.4 21.5 7.25 12 M6×8 8 9.5 10.2 23 23.6 11 9 7 30 20 M6×20 33.9 73.4 0.975 0.991 0.991 0.75 3.08
RGH30CA 45 6 16 60 40 10 40 71 109.8 23.5 8 12 M8×10 8 9.5 10.3 28 28 14 12 9 40 20 M8×25 39.1 82.1 1.445 1.06 1.06 0.9 4.41
RGH30HA 45 6 16 60 40 10 60 93 131.8 24.5 8 12 M8×10 8 9.5 10.3 28 28 14 12 9 40 20 M8×25 48.1 105 1.846 1.712 1.712 1.16 4.41
RGH35CA 55 6.5 18 70 50 10 50 79 124 22.5 10 12 M8×12 12 10 19.6 34 30.2 14 12 9 40 20 M8×25 57.9 105.2 2.17 1.44 1.44 1.57 6.06
RGH35HA 55 6.5 18 70 50 10 72 106.5 151.5 25.25 10 12 M8×12 12 10 19.6 34 30.2 14 12 9 40 20 M8×25 73.1 142 2.93 2.6 2.6 2.06 6.06
RGH45CA 70 8 20.5 86 60 13 60 106 153.2 31 10 12.9 M10×17 16 14 24 45 38 20 17 14 75 22 M12×35 92.6 178.8 4.52 3.05 3.05 3.18 9.97
RGH45HA 70 8 20.5 86 60 13 80 139.8 187 37.9 10 12.9 M10×17 16 14 24 45 38 20 17 14 75 22 M12×35 116 230.9 6.33 5.47 5.47 4.13 9.97
RGH55CA 80 10 23.5 100 75 12.5 75 125.5 183.7 37.75 12.5 12.9 M12×18 17.5 17.5 29 53 44 23 20 16 60 30 M14×45 130.5 252 8.01 5.4 5.4 4.89 13.98
RGH55HA 80 10 23.5 100 75 12.5 95 173.8 232 51.9 12.5 12.9 M12×18 17.5 17.5 29 53 44 23 20 16 60 30 M14×45 167.8 348 11.15 10.25 10.25 6.68 13.98
RGH65CA 90 12 31.5 126 76 25 70 160 232 60.8 15.8 12.9 M16×20 25 25 37.5 63 53 26 22 18 75 35 M16×50 213 411.6 16.2 11.59 11.59 8.89 20.22
RGH65HA 90 12 31.5 126 76 25 120 223 295 67.3 15.8 12.9 M16×20 25 25 37.5 63 53 26 22 18 75 35 M16×50 275.3 572.7 22.55 22.17 22.17 12.13 20.22
Attention：1 kgf = 9.81 N,  CsoR=1.23x C10oR
