The RGW45CC roller guide block is a flange-type carriage engineered as a direct HIWIN compatible replacement for the RG45 roller guide rail system. Driven by precision rollers instead of balls, it is a heavy duty linear guide block that delivers higher rigidity and load capacity than ball-type guides of the same 45 mm size, while keeping travel smooth and accurate. If your equipment needs a spare carriage for RG45 rails, this RGW45CC roller guide block is a drop-in HIWIN compatible linear guide block.
Why choose this 45mm flange linear guide block? Compatibility first: every RGW45CC roller guide block we ship is dimensionally interchangeable with the original model and runs directly on standard RG45 rails, so a retrofit needs no extra machining. Performance second: the roller structure gives this heavy duty linear guide block high rigidity, high load capacity and low friction, which suits continuous production. Maintenance third: end seals and grease fittings are pre-installed, so the HIWIN compatible linear guide block runs for long intervals between services.
Get a Quote

Core Product Features

Ultra Compact & Lightweight Design

Narrow 7mm rail profile, ultra-small cross-section structure, greatly saving internal installation space of mini machines; low self-weight reduces equipment moving load, ideal for portable and mini precision devices.

4-Point Gothic Arch Contact, Equal Load in 4 Directions

Adopts 45° gothic arc raceway & 4-row recirculating ball structure, evenly bears radial, reverse radial, horizontal and overturning torque loads. Higher rigidity than 2-row miniature guides, stable motion under complex offset loads without jitter.

Built-In Ball Retainer, Interchangeable Structure

Integrated micro steel ball retainer prevents balls falling off when disassembling the block from rail, convenient for installation, maintenance and replacement. Same precision grade rails & blocks can be freely matched, no need to pair as original sets, greatly reduce spare parts inventory cost.

Ultra-Low Friction, Smooth & Low Noise Movement

Superfinishing grinding on rail raceway surface, friction coefficient ≤0.003; rolling friction instead of sliding friction, low driving force, high-speed stable operation, running noise ≤45dB, suitable for silent precision testing equipment.

Wide Application Fields

The RGW45CC roller guide block is widely used on CNC machining centers, lathes, grinders and other machine tools where rigidity decides accuracy. It is also a proven 45mm flange linear guide block for automated assembly lines, laser cutting machines, measuring equipment and heavy packaging lines. If your plant already runs RG45 roller guide rails, you can swap in this heavy duty linear guide block as a direct replacement and keep production moving.

3D Printing & Desktop CNC Equipment

Cartesian 3D printer X/Y/Z axis motion, mini engraving machine, laser marking small sliding platform, stable high-speed printing & engraving without layer deviation.

Medical Diagnostic Instruments

Biochemical analyzer sample rack slide, ultrasound probe moving module, micro surgical robot end effector, blood testing equipment, stainless steel version meets medical anti-rust clean standards.

Precision Measuring & Optical Instruments

Coordinate measuring machine (CMM) micro probe axis, laser scanner, microscope objective moving platform, optical lens adjustment slide, guarantee ultra-stable detection accuracy.

Semiconductor & Electronic Automation

Wafer inspection stages, IC chip packaging manipulator, SMT mini placement head slide, AOI optical detection equipment, PCB micro cutting machines, support micron-level component assembly.

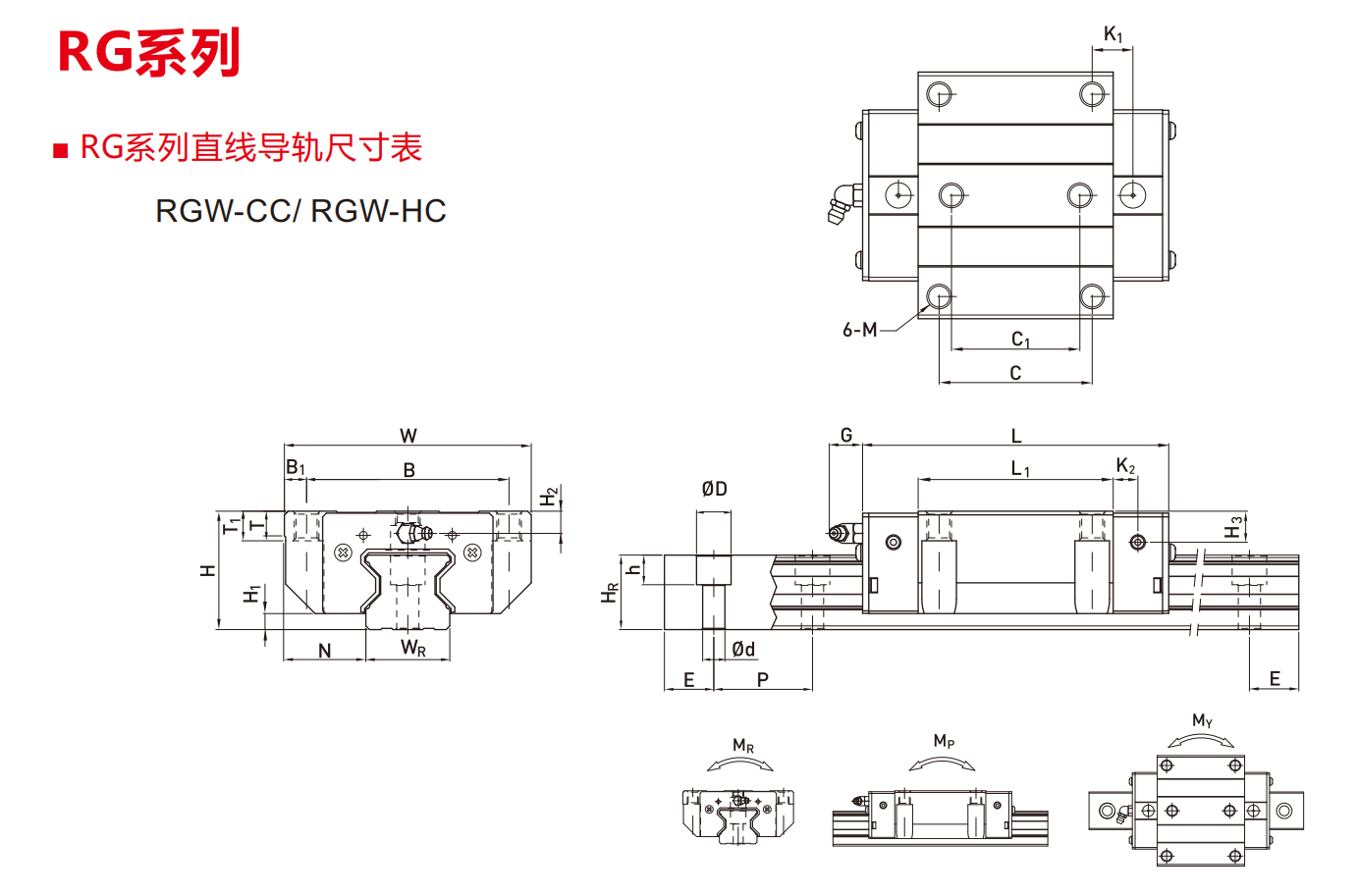

RGW roller guide rail and block

Product Parameter

Model Assambly Dimention
(mm)		 Block Dimention (mm) Rail Dimention (mm) Blot Dynamic load rating Static load rating  Allowable static moment  Block weight Rail weight
H H₁ N W B B₁ C L₁ L K₁ K₂ G M T T₁ T₂ H₂ H₃ Wᴿ Hᴿ D h d P mm C(kN) C₀(kN) Mᴿ(kN·m) Mₚ(kN·m) Mᵧ(kN·m) kg kg/m
RGW15CC 24 4 16 47 38 4.5 30 45 68 11.4 4.7 5.3 M5 6 6.95 3.6 6.1 15 16.5 7.5 5.7 4.5 30 20 M4×16 11.3 24 0.311 0.173 0.173 0.22 1.8
RGW20CC 30 5 21.5 63 53 5 40 57.5 86 13.8 6 5.3 M6 8 10 4.3 4.3 20 21 9.5 8.5 6 30 20 M5×20 21.3 46.7 0.647 0.46 0.46 0.47 2.76
RGW20HC 30 5 21.5 63 53 5 40 77.5 106 23.8 6 5.3 M6 8 10 4.3 4.3 20 21 9.5 8.5 6 30 20 M5×20 26.9 63 0.872 0.837 0.837 0.63 2.76
RGW25CC 36 5.5 23.5 70 57 6.5 45 64.5 97.9 15.75 7.25 12 M8 8 14 6.2 6.2 23 23.6 11 9 7 30 20 M6×20 27.7 57.1 0.758 0.605 0.605 0.72 3.08
RGW25HC 36 5.5 23.5 70 57 6.5 45 81 114.4 24 7.25 12 M8 8 14 6.2 6.2 23 23.6 11 9 7 30 20 M6×20 33.9 73.4 0.975 0.991 0.991 0.91 3.08
RGW30CC 42 6 31 90 72 9 52 71 109.8 17.5 8 12 M10 8.5 16 6.5 7.3 28 28 14 12 9 40 20 M8×25 39.1 82.1 1.445 1.06 1.06 1.16 4.41
RGW30HC 42 6 31 90 72 9 52 93 131.8 28.5 8 12 M10 8.5 16 6.5 7.3 28 28 14 12 9 40 20 M8×25 48.1 105 1.846 1.712 1.712 1.52 4.41
RGW35CC 48 6.5 33 100 82 9 62 79 124 16.5 10 12 M10 10.1 18 9 12.6 34 30.2 14 12 9 40 20 M8×25 57.9 105.2 2.17 1.44 1.44 1.75 6.06
RGW35HC 48 6.5 33 100 82 9 62 106.5 151.5 30.25 10 12 M10 10.1 18 9 12.6 34 30.2 14 12 9 40 20 M8×25 73.1 142 2.93 2.6 2.6 2.4 6.06
RGW45CC 60 8 37.5 120 100 10 80 106 153.2 21 10 12.9 M12 15.1 22 8.5 20.5 45 38 20 17 14 75 22 M12×35 92.6 178.8 4.52 3.05 3.05 3.43 9.97
RGW45HC 60 8 37.5 120 100 10 80 139.8 187 37.9 10 12.9 M12 15.1 22 8.5 20.5 45 38 20 17 14 75 22 M12×35 116 230.9 6.33 5.47 5.47 4.57 9.97
RGW55CC 70 10 43.5 140 116 12 95 125.5 183.7 27.75 12.5 12.9 M14 17.5 26.5 12 19 53 44 23 20 16 60 30 M14×45 130.5 252 8.01 5.4 5.4 5.43 15.08
RGW55HC 70 10 43.5 140 116 12 95 173.8 232 51.9 12.5 12.9 M14 17.5 26.5 12 19 53 44 23 20 16 60 30 M14×45 167.8 348 11.15 10.25 10.25 7.61 15.08
RGW65CC 90 12 53.5 170 142 14 110 160 232 40.8 15.8 12.9 M16 25 37.5 15 15 63 53 26 22 18 75 35 M16×50 213 411.6 16.2 11.59 11.59 8.89 21.18
RGW65HC 90 12 53.5 170 142 14 110 223 295 72.3 15.8 12.9 M16 25 37.5 15 15 63 53 26 22 18 75 35 M16×50 275.3 572.7 22.55 22.17 22.17 16.58 21.18
Attention：1 kgf = 9.81 N,  CsoR=1.23x C10oR
