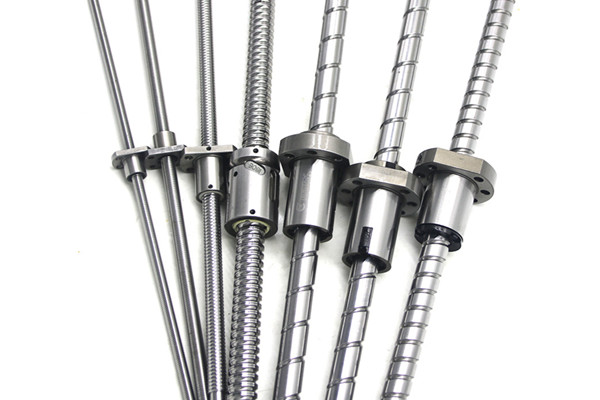

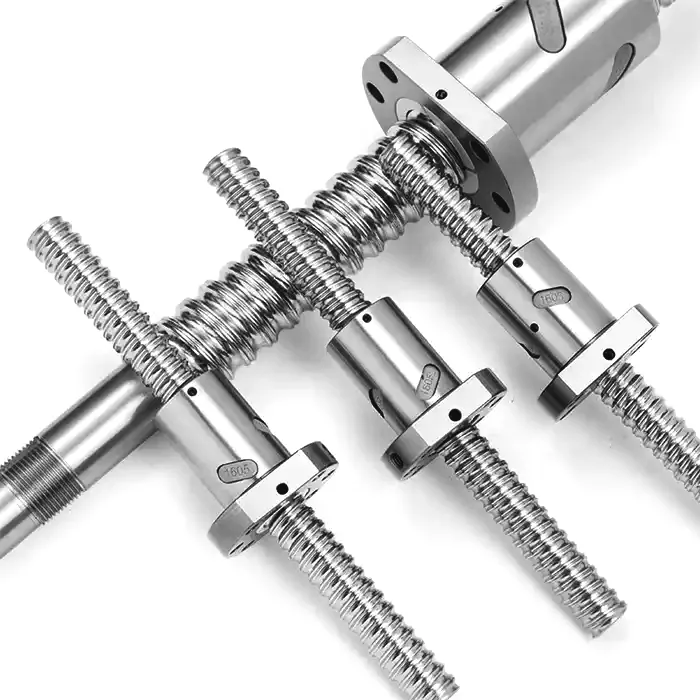

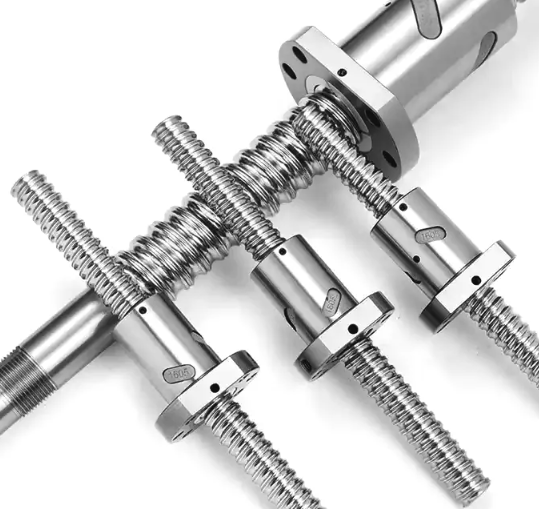

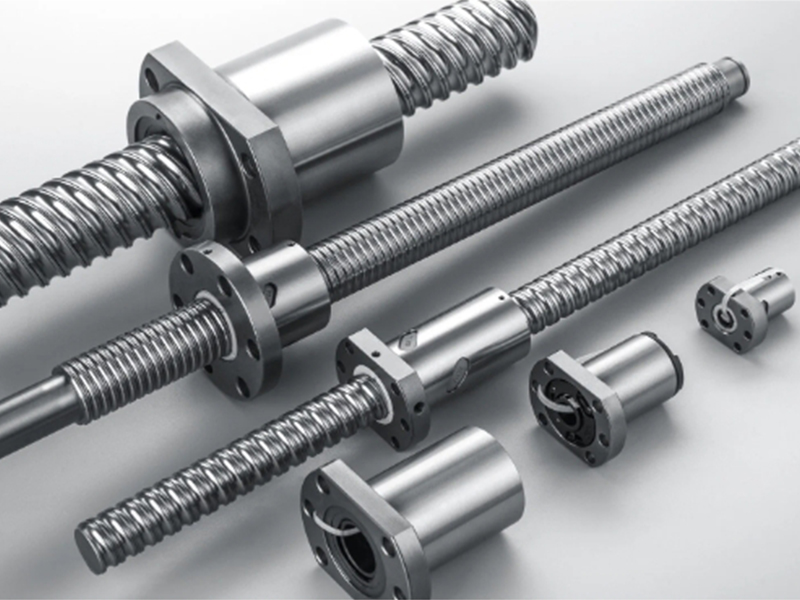

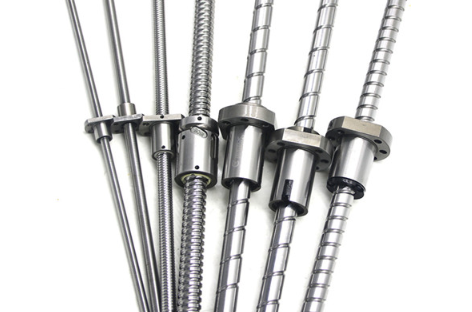

Ball Screw is made of screw and ball screw nut. 10mm ball screw's function is to turn the rotary motion into linear motion which is a future extension and development of ball screw. The significance of the development is to move into a rolling bearing from sliding action. With little frication, Ball Screw are widely used into various industrial equipment and precision instruments.
| Ball Srew Series | |
| Diameter6mm | 0601 |
| Diameter8mm | 0801 0802 |
| Diameter10mm | 1002 1004 |
| Diameter12mm | 1202 1204 1205 1210 |
| Diameter16mm | 1604 1605 1610 1616 |
| Diameter20mm | 2004 2005 2010 2020 |
| Diameter25mm | 2505 2510 2525 |
| Diameter32mm | 3205 3210 3220 3232 |
| Diameter40mm | 4005 4010 4020 4040 |
| Diameter50mm | 5005 5010 5020 |
| Diameter63mm | 6310 6320 |
| Diameter80mm | 8010 |
| SFU Ball Screw Nut Model No.(plastic deflector or metal deflector ) | ||||||
| Ball Screw Nut SFU1204-3;SFU1605-3;SFU1605-4; SFU1610-2; SFU2005-3;SFU2005-4;SFU2505-3; | ||||||
| Ball Screw Nut SFU2505-4;SFU2510-4;SFU3205-3;SFU3205-4;SFU4005-4;SFU4010-4; SFU5010-4; | ||||||
| Ball Screw Nut SFU6310-4;SFU8010-4 | ||||||
| SFK Ball Screw cnc Model No. | ||||||
| SFK0601;SFK0801;SFK0802;SFK082.5;SFK1002;SFK1004;SFK1202;SFK1402 | ||||||
| SFS Ball Screw cnc Model No. | ||||||
| SFS1205;SFS1210;SFS1605;SFS1610;SFS1616;SFS1620;SFS2010;SFS2510;SFS2525;SFS3210;SFS4010 | ||||||
| SFI Ball Screw cnc Model No. | ||||||
| SFI1605;SFI1610;SFI2005;SFI2505;SFI2510;SFI3205;SFI3210;SFI4005;SFI4010 | ||||||
| SFE Ball Screw cnc Model No. | ||||||
| SFE1616;SFE2020;SFE2525;SFE3232;SFE4040 | ||||||
| SFY Ball Screw cnc Model No. | ||||||
| SFY1616;SFY2020;SFY2525;SFY3232;SFY4040 | ||||||
| SFA Ball Screw cnc Model No. | ||||||
| SFA1205;SFA1210;SFA1605;SFA1610;SFA1616;SFA1620;SFA2010;SFA2510;SFA2525;SFA3210;SFA4010 | ||||||
| Ball Screw End Supports Model No. | ||||||
| BK10 BF10, BK12 BF12, BK15 BF15, BK17 BF17, BK20 BF20, BK25 BF25, | ||||||
| BK30 BF30, BK35 BF35, BK40 BF40 | ||||||
| EK06 EF06, EK08 EF08, EK10 EF10, EK12 EF12, EK15 EF15, EK20 EF20; EK25 EF25 | ||||||
| FK06 FF6, FK08 FF08,FK10 FF10, FK12 FF12, FK15 FF15, FK20 FF20, FK25 FF25, FK30 FF30 | ||||||
| Ball Screw Nut Housings Model No. (Aluminium or Iron) | ||||||
| Ball Screw Nut DSG12H(1204),DSG16H(1605/1610), DSG20H(2005/2010), DSG25H(2505/2510), | ||||||
| DSG32H(3205/3210),DSG40H(4005/4010),DSG50H(5005/5010) |
Features of ball screw cnc
1.High-speed operation
2.Low friction and noise
3.High precision, duration, and reliability
4.Smooth movement
5.High efficiency of transferring
6.No gap and preloading
Applications
1.Machine tools
2.Industrial machinery
3.Printing, paper-processing, automatic machines, textiles, etc.
4.Electronic machinery
5.Robot, measuring instruments, medical equipment, X-Y table, factory automation equipment
6.Transport machinery
10mm Ball Screw Nut And Ball Screw CNC is a high-precision drive system component widely used in CNC machine tools, automation equipment and precision instruments. The combination of a ball screw and a ball screw nut enables precise linear motion and efficient power transmission under high loads and at high speeds.
10mm ball screw refers to ball screws with a shaft diameter of 10mm. 10mm ball screws are commonly used in small and medium-sized CNC equipment and automation systems. 10mm ball screws have a smaller size while maintaining high accuracy, which makes 10mm ball screw suitable for use in equipment with high space requirements, such as 3D printers, lightweight CNC machine tools and precision instruments. 10mm ball screw can provide smooth linear motion while carrying large axial loads, making 10mm ball screw suitable for application scenarios that require efficient transmission and precise control.
Our Quality:
Quality is the life . We use only the best quality material to ensure the standard of our product range is of the highest caliber.
All products we sold out are strictly selected and tested by our QC department.
Warranty:
We provide one year warranty for all products.
Payment:
We accept payment via TT (Bank transfer), Paypal,Western Union, and Money Gram.
We accept bank transfer for large orders. For small order, you'd better pay via Paypal,Western union or Money Gram
Shipping:
We offer as many shipping options as possible, including DHL, UPS, TNT, FEDEX and EMS, Airfreight and by Sea.
Load capacity is determined by dynamic (C) and static (C₀) load ratings. For example: A 6205 deep groove ball bearing has a dynamic load rating of 14 kN, suitable for small motors. For heavy loads, choose tapered roller bearings (e.g., 32208 with C=90 kN). Recommendation: Share your equipment’s load analysis for optimal bearing selection.
Materials: Stainless steel (440C/316) or coatings (nickel plating, DLC). Seals: Double rubber seals (2RS) or PTFE seals. Example: Seawater pumps often use 316 stainless steel bearings with lifelong grease.
Speed limits depend on bearing type and lubrication: Standard 608ZZ ball bearings: ~18,000 rpm. Hybrid ceramic bearings (Si3N4 balls): 30–50% higher speeds. Solution: For high-speed applications, opt for oil lubrication or low-friction design.
Theoretical lifespan: Based on load calculations (see Q1). Real-world factors: Lubrication intervals (e.g., grease replenishment every 100km). Mounting surface flatness (≤0.01mm/m required). Tool: Free lifespan calculation software available.
Must-check: Slider hole spacing (e.g., 45mm×45mm). Rail width (15/20/25mm, etc.). Slider height (impacts machine space). Pro tip: Old slider model numbers are often engraved on the side.
Of course, we provide customized service, including add customers’ logo on the products, customized size of linear guide rail.
It according to the products, we usually can adjust the quantity according to customers’ request.
Invoices are automatically emailed to you when you complete your order. If you did not receive one contact us and provide your order number so we can find your order.
When your order ships you will receive an email with a tracking number which should have an estimated delivery date. Check your spam folder if you do not see it in your inbox. For more information on shipping, please reference our shipping policy.
You can either fill out the contact us form on our website, or head over to our sister website ngsbearing.com and request a quote over there for any product you see here on Bearings Direct. Please note that there will be minimum order quantities.
