rod end plain bearings

In the high-stakes world of motorsports, where every component is scrutinized for performance, spherical plain bearings—often called spherical bearings or rod ends—are indispensable. Far more than simple connectors, they are critical engineering components that directly influence a race car's handling, responsiveness, and ultimate performance. They represent a fundamental shift from the comfort-oriented components of road cars to the uncompromising, precision-focused elements of a racing machine.

What are Spherical Plain Bearings?

A spherical plain bearing is a specialized type of bearing that facilitates articulation and rotation through a sliding spherical surface. Its core design consists of an inner ring with a convex spherical outside diameter and an outer ring with a corresponding concave spherical inside diameter.

This "ball-and-socket" configuration is fundamentally different from the rubber bushings found in road cars or the rolling elements of ball bearings. Its purpose is not to isolate vibrations but to provide a precise, rigid, and friction-controlled pivot point.

Core Structure and Operating Principle

1. Structure:

• Inner Ring: The "ball," typically made from high-strength steel or titanium.

• Outer Ring: The "socket," which houses the inner ring.

• Sliding Surface: The heart of the bearing. In motorsport applications, this is almost exclusively a self-lubricating design. A low-friction composite liner, often made from PTFE (Polytetrafluoroethylene) woven fabric or a PTFE-lead-bronze sintered compound, is bonded to the inner ring's spherical surface.

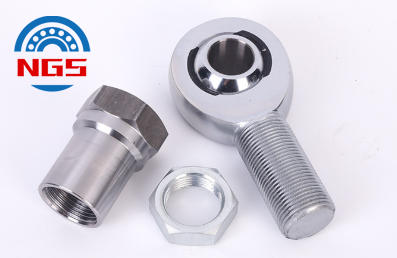

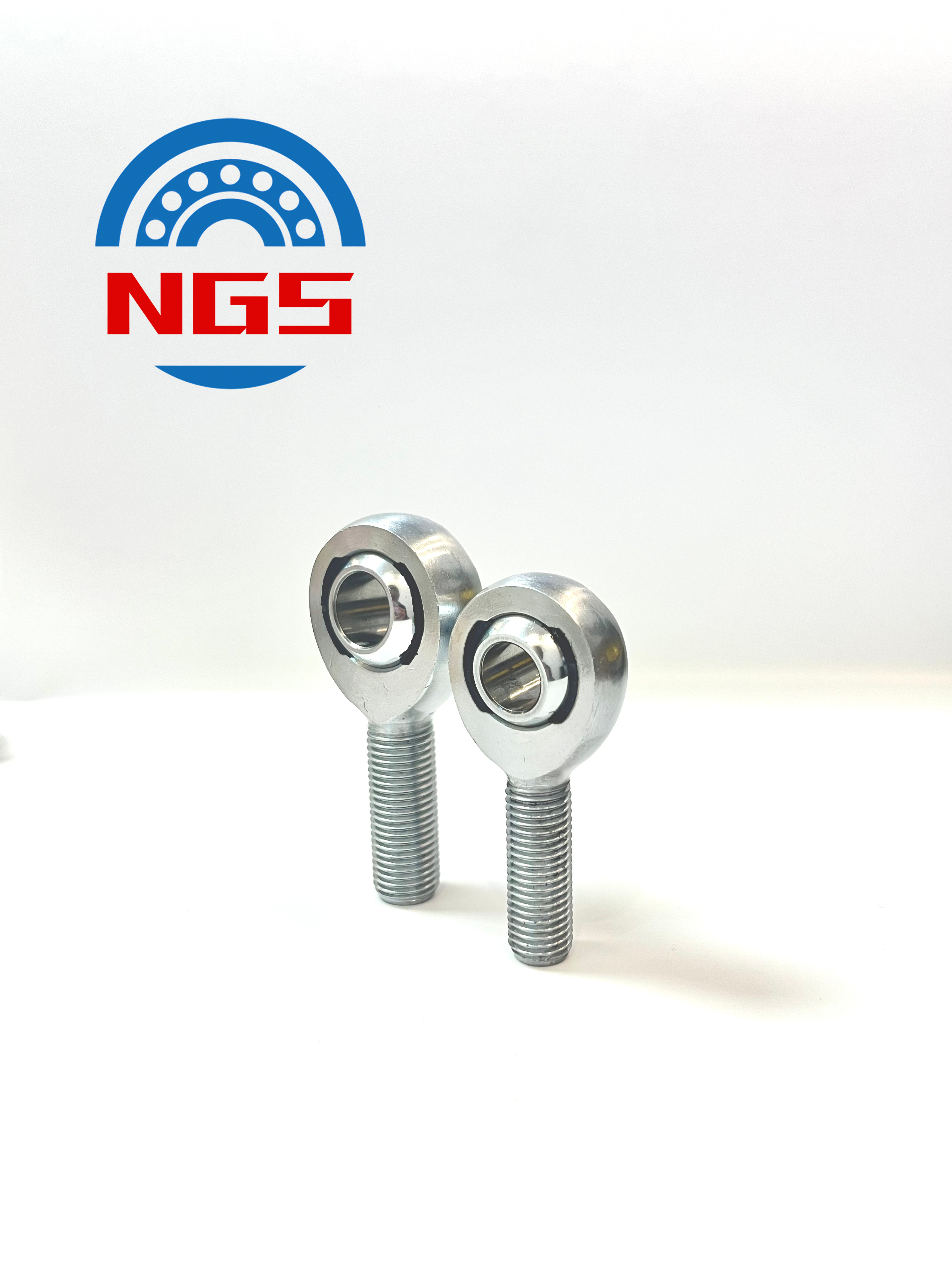

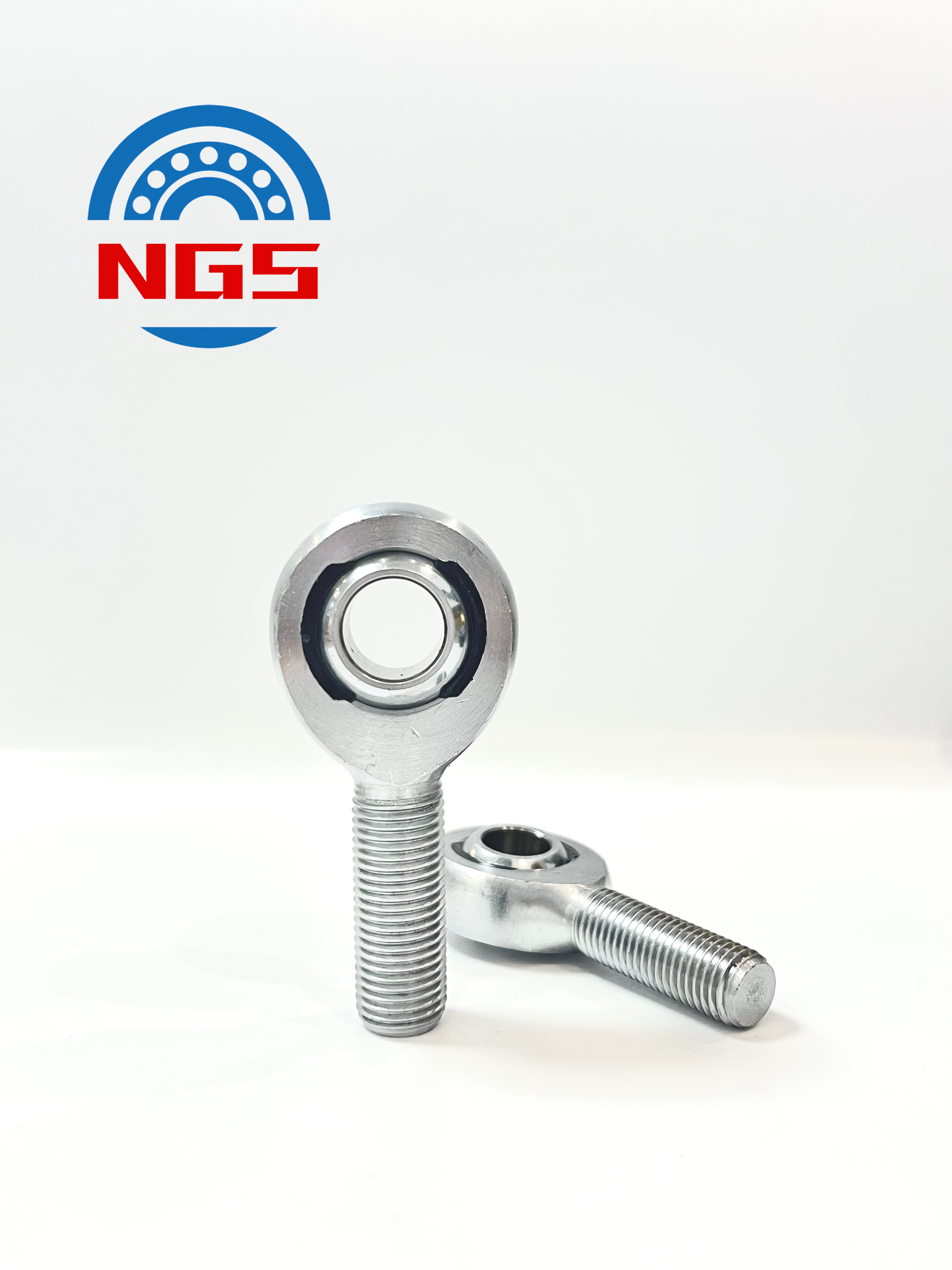

• Rod End Body: For linkages, the bearing is often pressed into a forged or machined body with a male or female thread, creating a rod end bearing.

2. Operating Principle:

• Articulation: The inner ring can swivel within the outer ring, accommodating misalignment. This is crucial for compensating for chassis flex, manufacturing tolerances, and the dynamic movement of the suspension under load.

• Rotation: The inner ring can also rotate (slide) around its own axis.

• Zero-Backlash: The bearing is designed and pre-loaded to have virtually no free play. This eliminates the vague, delayed response associated with worn or soft rubber bushings.

• Low-Friction Sliding: The advanced self-lubricating liner ensures minimal resistance to movement, allowing the suspension to react instantly to curb strikes and minute road surface variations.

Why are Spherical Bearings Ubiquitous in Race Cars?

The substitution of soft rubber bushings with rigid spherical bearings delivers transformative performance benefits:

1. Ultimate Precision and Feedback

• Direct Response: Rubber bushings deflect under load, introducing lag and isolating the driver from road feel. Spherical bearings provide a direct, mechanical connection. Every input from the steering wheel and every force from the tire is transmitted instantly and faithfully to the chassis and the driver's hands.

• Predictable Suspension Kinematics: Engineers can model and predict the suspension's behavior with extreme accuracy. The rigid connections ensure the suspension follows its designed kinematic path, maintaining optimal tire camber and contact patch throughout the cornering cycle for maximum grip.

2. Exceptional Rigidity and Stiffness

• Spherical bearings exhibit negligible deflection under load. This dramatically increases the overall stiffness of the chassis and suspension systems, reducing body roll under cornering and pitch under braking. A stiffer platform allows for more precise tuning and gives the driver greater confidence at the limit.

3. Significant Weight Reduction

• The relentless pursuit of a low power-to-weight ratio demands that every gram counts. Spherical bearings are compact and can be manufactured from high-strength steels or even titanium, offering an exceptional strength-to-weight ratio. Replacing bulky, fluid-filled bushings with these compact bearings saves crucial weight.

4. Durability and Maintenance-Free Operation

• High-performance self-lubricating bearings are sealed for life. The PTFE-based liner provides consistent performance without needing grease, which could attract abrasive brake dust and track debris. This "fit-and-forget" characteristic is essential for the reliability required over a race weekend or season.

5. Misalignment Compensation

• Despite their rigidity, the spherical design inherently allows for angular misalignment. This is vital for accommodating the elastic deformation of the chassis and suspension members under extreme cornering loads, preventing binding and high-stress concentrations.

Critical Applications on a Race Car

1. Suspension System:

• Pushrods/Pullrods: The critical links that transfer force from the wheel to the spring/damper unit.

• Rocker Arms: The pivoting levers that translate pushrod/pullrod motion to the damper.

• Uprights/Knuckles: The connection points for the upper and lower wishbones.

• Anti-Roll Bar Links.

2. Steering System:

• Tie-Rod Ends: These directly connect the steering rack to the uprights, dictating toe angle. Precision here is non-negotiable for sharp turn-in and stability.

3. Drivetrain and Controls:

• Gearshift linkages, throttle cable linkages, and clutch mechanisms.

In all these locations, spherical bearings ensure that the theoretical performance designed by engineers is fully realized on the track.

Special Types and Materials for Motorsport

The extreme demands of racing have led to specialized bearing variants:

• Standard Self-Lubricating: The workhorse, with a PTFE composite liner for low friction and long life.

• Metal-on-Metal: Used in very specific, low-movement, ultra-high-load applications (e.g., some anti-roll bar pivots). They require frequent lubrication and are less common.

• Materials:

• Chrome Steel: The standard material, offering an excellent balance of strength, cost, and durability.

• Stainless Steel: Used where corrosion resistance is a priority.

• Titanium Alloy: The premium choice for unsprung mass and critical linkages. It offers a ~40% weight saving over steel for equivalent strength but at a significantly higher cost.

• Seals: High-quality, low-friction seals are critical. They keep abrasive contaminants out while minimizing drag on the bearing's movement.
