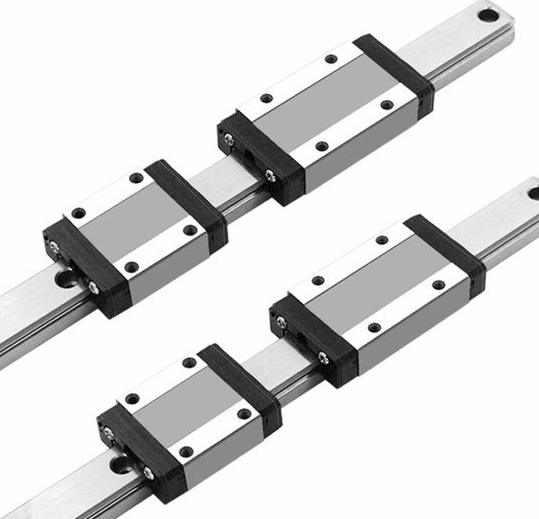

As a leading supplier, we specialize in these ultra-compact, high-performance mini linear slide or miniature linear rails systems, engineered to empower the next generation of groundbreaking technology.
This comprehensive guide details the MGN7 linear rail, focusing on the robust MGN7H linear rail variant, and explores mgn7h linear rail's unparalleled capabilities. We will demonstrate how our miniature linear rails outperform conventional solutions and why our miniature linear bearing technology sets a new standard for reliability in the most demanding fields.
The MGN7 linear rail or is not merely a component; it is an enabling technology for industries operating at the frontiers of science and manufacturing. miniature linear rails' core value lies in delivering uncompromised motion control in environments where larger miniature linear rails simply cannot fit.
Life Science & Biomedical Instrumentation:
The MGN7H linear rail is indispensable in single-cell manipulation systems and microinjection platforms. This mini linear slide or miniature linear rails technology drives the precision stages of advanced genomic sequencers and synthesizers.
As a core miniature linear bearing system, mini linear slide or miniature linear rails enables the delicate positioning mechanisms within neural probes and advanced microscopy stages.
Photonics, Quantum Technology & Semiconductors:
In photonics alignment and quantum computing apparatus, the exceptional stability and low thermal drift of the MGN7 linear rail are paramount. This mini linear slide is used to position optical elements and sensors within cryogenic or ultra-high vacuum environments, a task for which few other miniature linear bearing systems are suited.
The MGN7H linear rail serves as a critical component inside semiconductor metrology tools, such as AFM/STM scanners and mask inspection systems.
Ultra-Precision Metrology & Advanced Robotics:
MGN7 linear rail offers the rigidity and geometric accuracy required for metrology-grade performance. This miniature linear bearing solution is fundamental to devices where measurement integrity is non-negotiable.
MGN7H linear rail provides reliable, high-stiffness guidance in an incredibly small package, enabling new paradigms in dexterous automation.
MGN7 linear rail series is the singular solution. It transforms spatial limitations into engineering advantages, making the mini linear slide a cornerstone of innovation.
The extraordinary capabilities of the MGN7 linear rail begin at the molecular level. We employ advanced material science and proprietary thermal processing to create a miniature linear bearing of exceptional durability and stability.
Premium Materials for Extreme Duty:
The core components of our MGN7H linear rail are manufactured from high-carbon chromium bearing steel (equivalent to SUJ2), renowned for its ability to achieve high hardness and excellent wear resistance—critical traits for a long-life mini linear slide.
For corrosive or non-magnetic environments, we offer a martensitic stainless-steel version of the MGN7 linear rail, ensuring performance is never sacrificed. The rolling elements in our miniature linear bearing systems are precision-grade steel or ceramic balls, selected for roundness, hardness, and smooth operation.
Advanced Thermal Processing for Dimensional Permanence:
Every MGN7H linear rail undergoes a meticulous deep-carbonization and quenching process. This creates a hardened surface layer (HRC 58-62) over a tough, ductile core, giving the mini linear slide or miniature linear rails exceptional resistance to contact fatigue and shock loads.
This critical step stabilizes the microstructure of the MGN7 linear rail, drastically reducing residual stresses. miniature linear bearing, mini linear slide or miniature linear rails used in metrology or scientific research.
Finishing to Micro-Perfection:
The raceways of our MGN7 linear rail are precision ground and super-finished to a mirror-like surface roughness (Ra ≤ 0.02 µm). Dramatically extends the life of the miniature linear bearing, mini linear slide or miniature linear rails assembly, making the MGN7H linear rail exceptionally smooth and predictable in operation.
The longevity of a mini linear slide or miniature linear rails is a key metric of its value. We provide transparent, science-based data and support to ensure you can accurately predict and maximize the service life of your MGN7 linear rail investment.
Calculated Life Based on Dynamic Load Capacity:
The rated life of the MGN7H linear rail is calculated using the ISO standard formula: L10 = (C / P)^3 * 100 km. Our engineering team assists in determining the correct 'P' value for your specific application of this miniature linear bearing system.
This calculation provides the L10 life, the distance 90% of a group of identical MGN7 linear rail units will exceed under the same conditions. It is the foundational benchmark for the mini linear slide's durability.
Critical Factors That Dictate Real-World Life:
Proper Lubrication: We offer a range of specialized greases (standard, fluorinated, vacuum-grade) for the MGN7H linear rail. Correct initial lubrication and a disciplined re-lubrication schedule are the most effective ways to multiply the life of your miniature linear bearing.
Effective Sealing: In contaminated environments, the standard seals on a mini linear slide may be insufficient. Upgrading to metal scraper and lip seals for your MGN7 linear rail is an essential investment to exclude abrasive particles, the primary cause of premature wear in a miniature linear bearing.
Precision Installation: The life of an MGN7H linear rail is highly sensitive to mounting surface flatness and parallelism. We provide detailed installation guides to ensure your mini linear slide performs as designed, avoiding skewed loading that can drastically shorten life.
Our Lifecycle Support:
We provide free online life calculation tools and direct engineering support to model the expected performance of your MGN7 linear rail. For critical systems, we can perform advanced life analysis to recommend optimal maintenance intervals for your miniature linear bearing application.
Your confidence in our MGN7 linear rail is backed by one of the most comprehensive support policies in the industry for a mini linear slide of this caliber.
Extended Warranty Program:
Every MGN7H linear rail is covered by a 24-month standard warranty. For end-users who register their product and demonstrate proper installation, we offer an extended warranty of up to 36 months, reflecting our absolute confidence in this miniature linear bearing system.
Global Technical & Logistical Support:
Our multi-tier support network ensures help is always available. From online resources for the mini linear slide to direct engineer access for the MGN7 linear rail, we guarantee a rapid response to keep your projects on track.
We maintain a 10-year minimum spare parts commitment for all MGN7H linear rail models. For warranty claims, our cross-shipping policy prioritizes the dispatch of replacement miniature linear bearing components to minimize your equipment downtime.
Value-Added Services:
We offer pre-installation guidance to verify the readiness of mounting surfaces for your MGN7 linear rail.
OEM customers benefit from lifecycle management and obsolescence planning for the MGN7H linear rail, ensuring long-term production stability for your products incorporating our miniature linear bearing ,miniature linear rails technology.
Our core strength lies in tailoring the MGN7 linear rail to meet your exact specifications.
Geometric & Dimensional Customization:
We supply the MGN7H linear rail in any length from 50mm to 1200mm, precision-cut and end-finished. Tell us the exact length for your mini linear slide, and we will deliver it ready to install.
Custom drilling and tapping patterns for both the rail and carriage of the MGN7 linear rail are standard offerings.
Performance & Configuration Customization:
Beyond standard accuracy grades, we can supply "Ultra-Precision" or "Super-Stable" versions of the MGN7H linear rail for the most demanding scientific and metrology applications.
We tailor miniature linear bearing preload (Z0, Z1, Z2) to optimize the stiffness/friction balance for your specific mini linear slide application.
The MGN7 linear rail can be customized for extreme environments: vacuum-compatible, wide-temperature-range, or fully corrosion-resistant builds.
Complete System Integration:
Our highest level of customization involves delivering the MGN7H linear rail as part of a pre-assembled, tested, and ready-to-run single-axis or multi-axis module. We integrate motors, drives, and sensors around your core miniature linear bearing or miniature linear rails system, providing a complete plug-and-play motion solution.
The MGN7 linear rail series, particularly the MGN7H linear rail, represents the pinnacle of mini linear slide technology. It is the product of choice for engineers who will not compromise on size, precision, or reliability.
If your project demands the ultimate in compact, high-performance motion control, the MGN7 linear rail is your solution. Contact our engineering team today to discuss your requirements, request detailed specifications for our miniature linear bearing ,miniature linear rails systems, and receive a personalized quotation. Let us help you build the future, one precise micron at a time.
