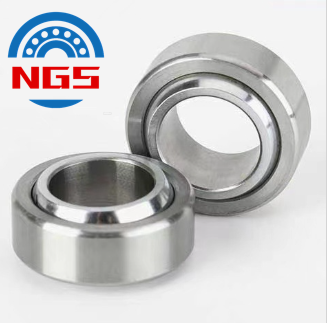

Stainless Steel Spherical Plain Bearings are self-aligning, anti-corrosion components designed for linkage and pivot points in demanding environments. The SA/SI and POS/PHS series Stainless Steel Spherical Bearings are two fundamental types that cater to different mounting and adjustment needs.
Stainless Steel Spherical Bearings have the advantages of Wear Resistance & Fatigue Life. stainless heim joint is Corrosion Resistance. Stainless steel heim joints can support very high static and dynamic loads and resist brinelling.
Stainless Steel Spherical Plain Bearings are self-aligning, anti-corrosion components designed for linkage and pivot points in demanding environments. such as 3 4 16 heim joint , 5 8 18 heim joint.
SA/SI Series stainless heim joint: These stainless steel heim joints or Stainless Steel Spherical Bearings are inner ring type spherical plain bearings. The stainless heim joint's inner ring has a threaded bore, allowing stainless heim joint to be mounted onto a bolt or a stud. This design offers a compact and integrated solution for space-constrained applications.such as 3 4 16 heim joint , 5 8 18 heim joint.

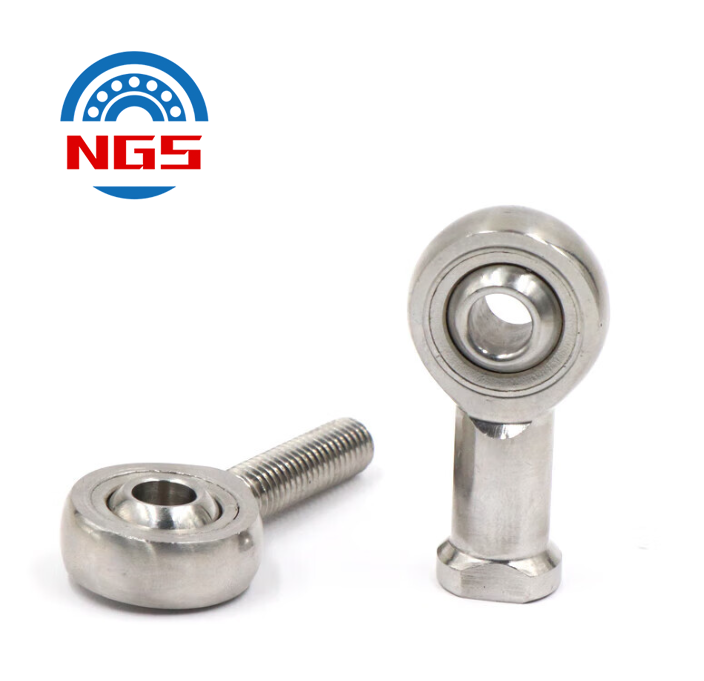

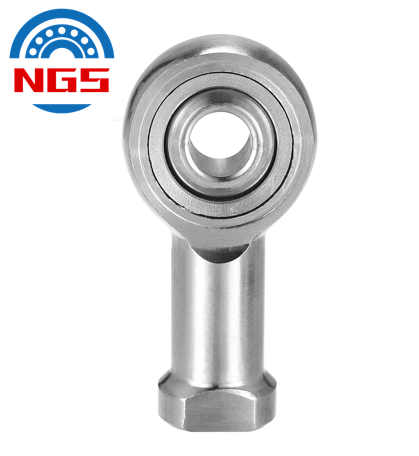

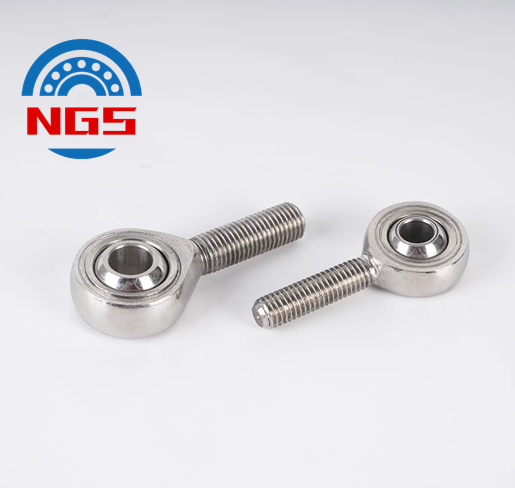

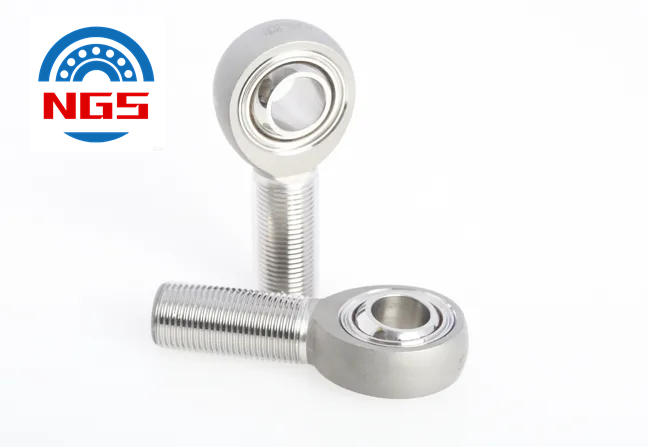

POS/PHS Series stainless heim joint: These stainless steel heim joints are threaded rod end spherical plain bearings (often called "Heim Joints" or "Rose Joints"). These stainless heim joint feature a integral shank with external threads, allowing for direct screw-in installation and easy length adjustment in a linkage assembly.such as 3 4 16 heim joint , 5 8 18 heim joint.
Together, these Stainless Steel Spherical Bearings or stainless heim joint series form the backbone of reliable, corrosion-resistant linear motion and linkage systems.such as 3 4 16 heim joint , 5 8 18 heim joint.
Both the SA/SI and POS/PHS series Stainless Steel Spherical Bearings or stainless heim joint share these critical benefits:
Superior Corrosion Resistance:
Manufactured from austenitic stainless steel (e.g., AISI 304 such as 3 4 16 heim joint , 5 8 18 heim joint.), stainless heim joint such as 3 4 16 heim joint , 5 8 18 heim joint excel in moist, chemical, and saline environments, making them ideal for food processing, marine, and outdoor applications.
Low Maintenance & Self-Lubricating:
Standard versions of stainless heim joint are equipped with PTFE-based composite liners, enabling maintenance-free, "dry-running" operation without the need for grease.
High Strength and Durability:
Engineered to withstand high static and dynamic loads, these bearings such as 3 4 16 heim joint , 5 8 18 heim joint.offer excellent resistance to shock and fatigue, ensuring long service life.
Hygienic and Easy to Clean:
The smooth, non-porous surface finish of stainless steel heim joints (such as 3 4 16 heim joint , 5 8 18 heim joint) prevents bacterial growth and material buildup, facilitating easy cleaning and sterilization to meet strict industry hygiene standards.
Wide Operating Temperature Range:
Suitable for use across a broad temperature spectrum (typically from -50°C to +200°C), thanks to the stainless steel construction and stable liner materials.
The performance of these stainless steel heim joints(such as 3 4 16 heim joint , 5 8 18 heim joint) is defined by their material composition.
| Component | Standard Material Options | Characteristics & Application Guide |
|---|---|---|
| Bearing Ring (Inner/Outer) | AISI 304 Stainless Steel | The standard choice. Offers the best all-around corrosion resistance for most applications. Cost-effective. |
| AISI 316/L Stainless Steel | Enhanced corrosion resistance. Superior performance in chloride-rich environments (e.g., seawater, strong chemicals). Higher cost. | |
| Sliding Surface (Liner) | PTFE (Polytetrafluoroethylene) Composite | Standard self-lubricating option. Provides an extremely low coefficient of friction, high chemical resistance, and is suitable for most oscillating and rotating motions. |
| POM (Polyoxymethylene) Composite | A cost-effective self-lubricating alternative with high mechanical strength, though with slightly lower temperature and chemical resistance than PTFE. | |
| Stainless Steel on Stainless Steel (No Liner) | Requires external lubrication. Used for very high temperatures or specific chemical exposures where PTFE is not suitab |
Selection Guide:
For general corrosion resistance and maintenance-free operation: Choose AISI 304 with a PTFE Liner.
For harsh, chloride-rich environments: Choose AISI 316/L with a PTFE Liner.
For extreme high-temperature applications: Choose a all-stainless-steel version and implement a reliable lubrication plan.
The SA/SI and POS/PHS series of stainless steel heim joints are indispensable in the following industries:
Food & Beverage Machinery: Mixers, fillers, packaging machines, conveyor linkages.
Pharmaceutical & Medical Equipment: Tablet presses, fluid handling systems, adjustable patient tables.
Marine & Offshore: Steering systems, hatch controls, rigging fittings.
Chemical & Textile Processing: Valve actuators, guide rollers in humid or chemically aggressive atmospheres.
Outdoor & Architectural Applications: Irrigation systems, outdoor lighting adjustment, door fittings.
Automation & Robotics: Light-duty robotic arms, conveyor tensioners, positioning stages.
1. SA/SI Series of stainless steel heim joints (Inner Ring Type) - Example Specifications
Common Size Range (Example): 3 4 16 heim joint,5 8 18 heim joint
| Model | Thread Size | Ball Diameter (mm) | Overall Width (mm) | Static Load Capacity (kN) ≈ |
| :--- | :--- | :--- | :--- | :--- |
| SA5S / SI5S | M5 | 10 | 16 | 4.1 |
| SA8S / SI8S | M8 | 12 | 20 | 6.7 |
| SA10S / SI10S | M10 | 14 | 22 | 9.8 |
| SA12S / SI12S | M12 | 18 | 28 | 14.5 |
| SA16S / SI16S | M16 | 22 | 32 | 21.0 |
2. POS/PHS Series (Threaded Rod End Type) - Example Specifications
Common Size Range (Example):3 4 16 heim joint,5 8 18 heim joint
| Model | Thread Size (mm) | Ball Diameter (mm) | Overall Length (mm) | Static Load Capacity (kN) ≈ |
| :--- | :--- | :--- | :--- | :--- |
| POS6 / PHS6 | M6x1 | 10 | ~40 | 4.1 |
| POS8 / PHS8 | M8x1.25 | 12 | ~45 | 6.7 |
| POS10 / PHS10 | M10x1.25 | 14 | ~50 | 9.8 |
| POS12 / PHS12 | M12x1.5 | 18 | ~58 | 14.5 |
| POS16 / PHS16 | M16x1.5 | 22 | ~70 | 21.0 |
