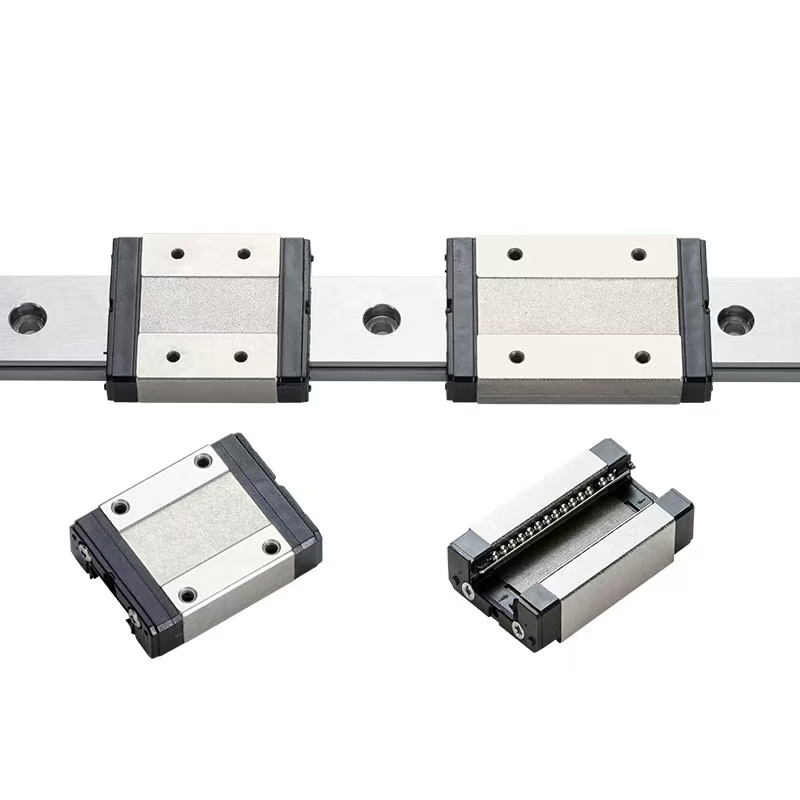

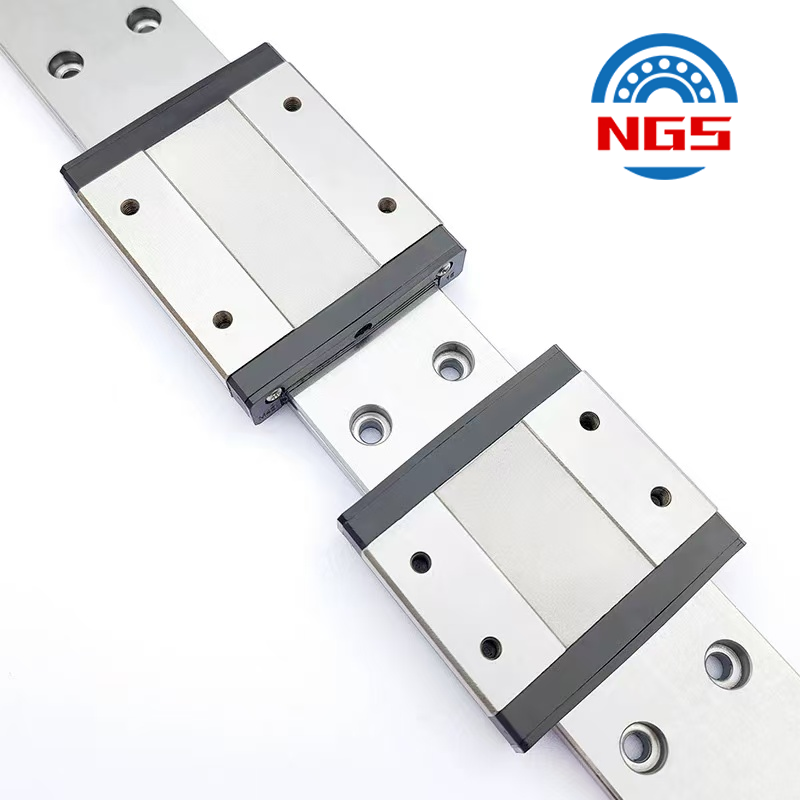

A widened miniature linear guide block is, as the name implies, a linear guide product that retains the core characteristics of a miniature linear rail series—namely, low installation height and a compact structure—while incorporating a specifically enlarged slider width (the W dimension). It is typically paired with a correspondingly widened miniature linear rail to form a linear motion system with significantly enhanced rigidity and stability. This design philosophy is also central to a high-performance micro linear slide, where stability is key. The entire assembly, often referred to as a miniature linear rail slide, benefits greatly from this widened approach.
Design Philosophy and Key Characteristics
The core design philosophy is "trading width for rigidity and increasing area for stability."
Retaining Miniature DNA: It fundamentally belongs to the "miniature" category. Key dimensions like rail width and block height remain small, making it suitable for space-constrained equipment. A widened micro linear rail is not merely a scaled-down large guide; it is a structural reinforcement built upon a miniature foundation. This principle applies to any high-rigidity micro linear slide.
The Purpose of Widening: The widening of the block directly leads to two critical structural changes:
Wider Ball/Roller Column Spacing: The load-carrying balls inside a miniature linear guide are distributed in two or more rows of grooves parallel to the rail. A widened block increases the lateral distance between these load-bearing columns (the column spacing). This is analogous to a person standing with their feet spread apart for greater stability against lateral pushes.
Larger Mounting Hole Pitch: The widened block provides a wider span for its mounting holes. This allows the block to be secured to a moving platform with screws that are farther apart, creating a more stable "area contact" fixation rather than a "point contact." This is a crucial feature for any robust miniature linear rail slide.
The superior performance of a widened miniature linear guide is rooted in precise materials science and heat treatment processes.
1. Slider and Rail Materials
High-Carbon Chromium Bearing Steel (e.g., SUJ2): This is the most common material for high-end miniature linear rails. SUJ2 steel offers high hardness, wear resistance, fatigue strength, and good dimensional stability. After quenching and low-temperature tempering, its surface hardness can reach HRC 58-62 or higher, ensuring the micro linear rail raceway remains smooth over long-term, high-frequency operation.
Stainless Steel (e.g., SUS440C, SUS304):
SUS440C: This martensitic stainless steel can achieve hardness close to SUJ2 through heat treatment, offering excellent corrosion resistance and good wear resistance. It is widely used in medical, food, beverage, and semiconductor manufacturing equipment where cleanliness and corrosion resistance are critical. A stainless steel micro linear slide is often the only choice in such environments.
SUS304: This austenitic stainless steel offers excellent corrosion resistance but cannot be hardened to high levels through heat treatment. It is typically used for the rail and block body, while internal balls may use SUS440C or ceramics. It is suitable for highly corrosive but lightly loaded environments where a durable miniature linear rail slide is needed.
2. Rolling Element Materials
Bearing Steel Balls: Matched with SUJ2 rails, this is the most cost-effective and performance-balanced choice for a standard miniature linear guide.
Stainless Steel Balls: Used with stainless steel rails for corrosive environments, ensuring the entire micro linear rail or miniature linear rails system is resistant.
Ceramic Balls (e.g., Silicon Nitride, Si3N4): A premium choice for high-end applications. Ceramics offer low density (light weight), high hardness, excellent wear resistance, a low thermal expansion coefficient, electrical insulation, and non-magnetic properties. A miniature linear guide or miniature linear rails with ceramic balls enables higher speeds, lower temperature rise, longer life, and is suitable for strong magnetic fields and vacuum environments.
The widened micro linear rail block, with its "small but strong" characteristics, plays a vital role in numerous fields with stringent space and performance requirements.
1. Semiconductor and Integrated Circuit Manufacturing Equipment
This is the premier application for a widened miniature linear guide. In photolithography machines, chip die bonders, wafer probers, and wire bonders, motion stages must carry expensive and precise optical components or wafers, performing nanometer-level positioning. The widened miniature linear rail or miniature linear rail slide provides unparalleled stability and rigidity, ensuring extreme overlay accuracy and production yield. The performance of the miniature linear rail slide or miniature linear guide in these machines is critical.The widened micro linear rail or miniature linear rails provides a foundational stability that standard models cannot match.
2. Precision Measurement and Inspection Equipment
A widened micro linear slide or miniature linear rail slide effectively suppresses deformation caused by probe contact force or machine acceleration, guaranteeing reliable data. The stability of the miniature linear guide or miniature linear rail slide is directly linked to measurement integrity.
3. Medical and Life Science Equipment
In surgical robots, DNA sequencers, automated biochemical analyzers, and high-resolution microscope stages, moving components must be compact, smooth, clean, and quiet. The widened design of the micro linear rail or miniature linear rails ensures absolute stability of robotic arms or sample stages during start-stop and motion, preventing vibration from affecting delicate procedures or observations. The miniature linear guide or miniature linear rails in these applications is often made from stainless steel.
4. Industrial Robotics and High-End Automation
In small six-axis/SCARA robots, precision assembly lines, and electronic component placement equipment (like SMT pick-and-place machines), the widened miniature linear rail or miniature linear rails is used in the robot's arm or end-effector. It better handles the moments generated by dynamic load changes, improving repeatability and speed. The robustness of this miniature linear rail slide or miniature linear rails is key to high cycle times.
Load capacity is determined by dynamic (C) and static (C₀) load ratings. For example: A 6205 deep groove ball bearing has a dynamic load rating of 14 kN, suitable for small motors. For heavy loads, choose tapered roller bearings (e.g., 32208 with C=90 kN). Recommendation: Share your equipment’s load analysis for optimal bearing selection.
Materials: Stainless steel (440C/316) or coatings (nickel plating, DLC). Seals: Double rubber seals (2RS) or PTFE seals. Example: Seawater pumps often use 316 stainless steel bearings with lifelong grease.
Speed limits depend on bearing type and lubrication: Standard 608ZZ ball bearings: ~18,000 rpm. Hybrid ceramic bearings (Si3N4 balls): 30–50% higher speeds. Solution: For high-speed applications, opt for oil lubrication or low-friction design.
Theoretical lifespan: Based on load calculations (see Q1). Real-world factors: Lubrication intervals (e.g., grease replenishment every 100km). Mounting surface flatness (≤0.01mm/m required). Tool: Free lifespan calculation software available.
Must-check: Slider hole spacing (e.g., 45mm×45mm). Rail width (15/20/25mm, etc.). Slider height (impacts machine space). Pro tip: Old slider model numbers are often engraved on the side.
