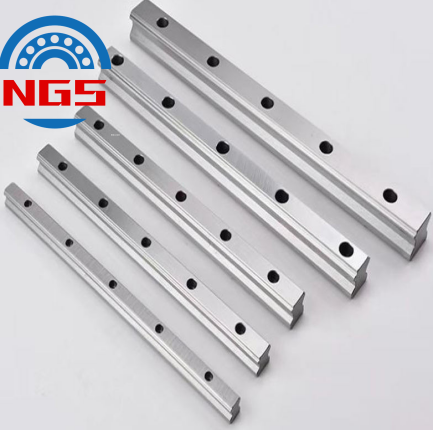

Linear guides are essential components in precision motion systems, providing accurate linear movement across industrial applications. This guide examines the key characteristics of different rail lengths including 500mm linear rail, 300mm linear rail, 400mm linear rail, and 1200mm linear rail systems, covering their functions, applications, selection criteria, and maintenance requirements.
Linear guides deliver precise straight-line motion through engineered rolling elements moving along hardened steel rails. These components constrain movement to a single axis while minimizing friction and maintaining accuracy. A 300mm linear rail system typically achieves micron-level repeatability, making it ideal for applications requiring exact positioning.
The load capacity varies with rail length - a 500mm linear rail supports moderate loads uniformly, while a 1200mm linear rail handles heavier loads through increased contact area. Linear guides and bearings effectively distribute forces across multiple load paths, enhancing system rigidity and longevity.
The structural configuration of linear guides and bearings significantly contributes to system stiffness. A properly specified 1200mm linear rail with appropriate linear guides and bearings resists deflection under operational loads, which is crucial for machining applications where cutting forces must be absorbed without compromising accuracy.
In industrial automation, linear guides and bearings provide precise motion control in robotic systems. 300mm linear rail systems in robotic joints enable precise articulation while handling moment loads. 400mm linear rail configurations in pick-and-place systems achieve high cycle times with micron-level repeatability, leveraging the low-friction characteristics of linear guides and bearings.
Machine tools utilize 1200mm linear rail systems with heavy-duty linear guides and bearings for gantry arrangements that support cutting loads while maintaining tool positioning. The vibration damping of properly preloaded linear guides and bearings enhances surface finish quality. 500mm linear rail systems with precision linear guides and bearings provide reliable worktable positioning in CNC machining applications.
Semiconductor manufacturing employs 300mm linear rail systems with specialized linear guides and bearings for contamination-free motion in cleanrooms. The minimal particle generation of properly sealed linear guides and bearings prevents product contamination. Electronics assembly uses 400mm linear rail configurations with high-speed linear guides and bearings for rapid component placement.
Medical equipment relies on 1200mm linear rail systems with precision linear guides and bearings for imaging system positioning. Laboratory automation implements 500mm linear rail or 400mm linear rail configurations with cleanroom-certified linear guides and bearings for contamination-free operation in research environments.
Rail Length Selection
Choose 300mm linear rail for compact applications with space constraints. For medium-length requirements, 400mm linear rail and 500mm linear rail options balance travel capacity with structural practicality. For extended travel, 1200mm linear rail systems require multiple support points and precision alignment to prevent sagging.
Load Capacity
Calculate both dynamic and static loads when selecting linear guides. The load distribution varies between 400mm linear rail and 1200mm linear rail implementations. Consider both magnitude and direction of applied loads, especially for 300mm linear rail applications where space is limited.
Accuracy Requirements
Select accuracy classes based on application needs. 300mm linear rail implementations in high-precision applications require superior grade linear guides. For 500mm linear rail systems, manufacturing tolerances ensure consistent performance across the entire travel length.
Environmental Factors
Consider operational environment when selecting linear guides. Standard versions suit typical industrial environments, while specialized seals protect against contaminants. For 400mm linear rail systems in corrosive environments, choose stainless steel or coated linear guides and bearings.
Lubrication Management
Regular lubrication is crucial for linear guides performance. For 300mm linear rail systems under moderate conditions, lubrication intervals typically range from 500 to 1,000 hours. 400mm linear rail or 500mm linear rail implementations may use automatic lubricators for consistent lubricant delivery. 1200mm linear rail configurations often benefit from centralized lubrication systems.
Inspection Protocols
Implement regular inspection of linear guides and bearings systems. For 500mm linear rail installations, check for lubricant condition, seal integrity, and surface contamination. Monitor 400mm linear rail systems for abnormal noise, temperature changes, or increased motion resistance. For critical 1200mm linear rail applications, consider permanent monitoring systems.
Cleaning Procedures
Maintain contamination control for linear guides systems. Regular cleaning of 300mm linear rail installations removes abrasive particles. 400mm linear rail systems in high-particulate environments require more frequent cleaning. Proper sealing in 500mm linear rail configurations reduces internal cleaning frequency.
Alignment Verification
Periodic alignment checks maintain linear guides accuracy. Use laser alignment for 300mm linear rail straightness verification. For 1200mm linear rail installations, take multiple measurements along the entire travel length. Proper alignment minimizes wear and maintains positioning accuracy in 400mm linear rail or 500mm linear rail systems.
Thermal Management
Consider thermal effects on linear guides performance. 300mm linear rail components must account for thermal expansion to prevent binding. High-speed 400mm linear rail or 500mm linear rail applications need thermal management strategies for linear guides. Precision 1200mm linear rail implementations may require environmental temperature control.
Vibration Control
Optimize linear guides and bearings preload to minimize vibration. 500mm linear rail implementations benefit from optimized lubrication parameters for noise reduction. For sensitive applications using 1200mm linear rail systems, consider vibration isolation mounts to meet noise requirements.
Linear guides and bearings enable precise linear motion across diverse applications. Proper selection and maintenance of these components, whether implementing 300mm linear rail systems or 1200mm linear rail configurations, directly impacts system performance and reliability.
Load capacity is determined by dynamic (C) and static (C₀) load ratings. For example: A 6205 deep groove ball bearing has a dynamic load rating of 14 kN, suitable for small motors. For heavy loads, choose tapered roller bearings (e.g., 32208 with C=90 kN). Recommendation: Share your equipment’s load analysis for optimal bearing selection.
Materials: Stainless steel (440C/316) or coatings (nickel plating, DLC). Seals: Double rubber seals (2RS) or PTFE seals. Example: Seawater pumps often use 316 stainless steel bearings with lifelong grease.
Speed limits depend on bearing type and lubrication: Standard 608ZZ ball bearings: ~18,000 rpm. Hybrid ceramic bearings (Si3N4 balls): 30–50% higher speeds. Solution: For high-speed applications, opt for oil lubrication or low-friction design.
Theoretical lifespan: Based on load calculations (see Q1). Real-world factors: Lubrication intervals (e.g., grease replenishment every 100km). Mounting surface flatness (≤0.01mm/m required). Tool: Free lifespan calculation software available.
Must-check: Slider hole spacing (e.g., 45mm×45mm). Rail width (15/20/25mm, etc.). Slider height (impacts machine space). Pro tip: Old slider model numbers are often engraved on the side.
