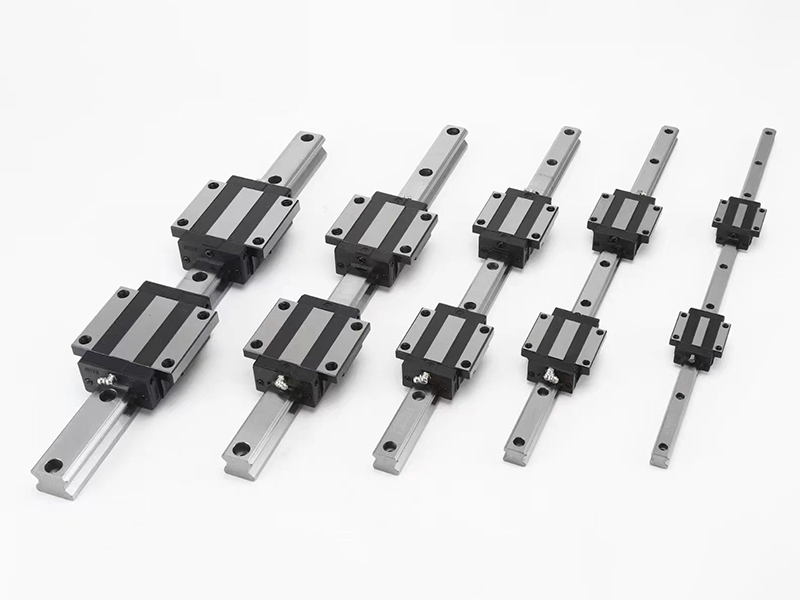

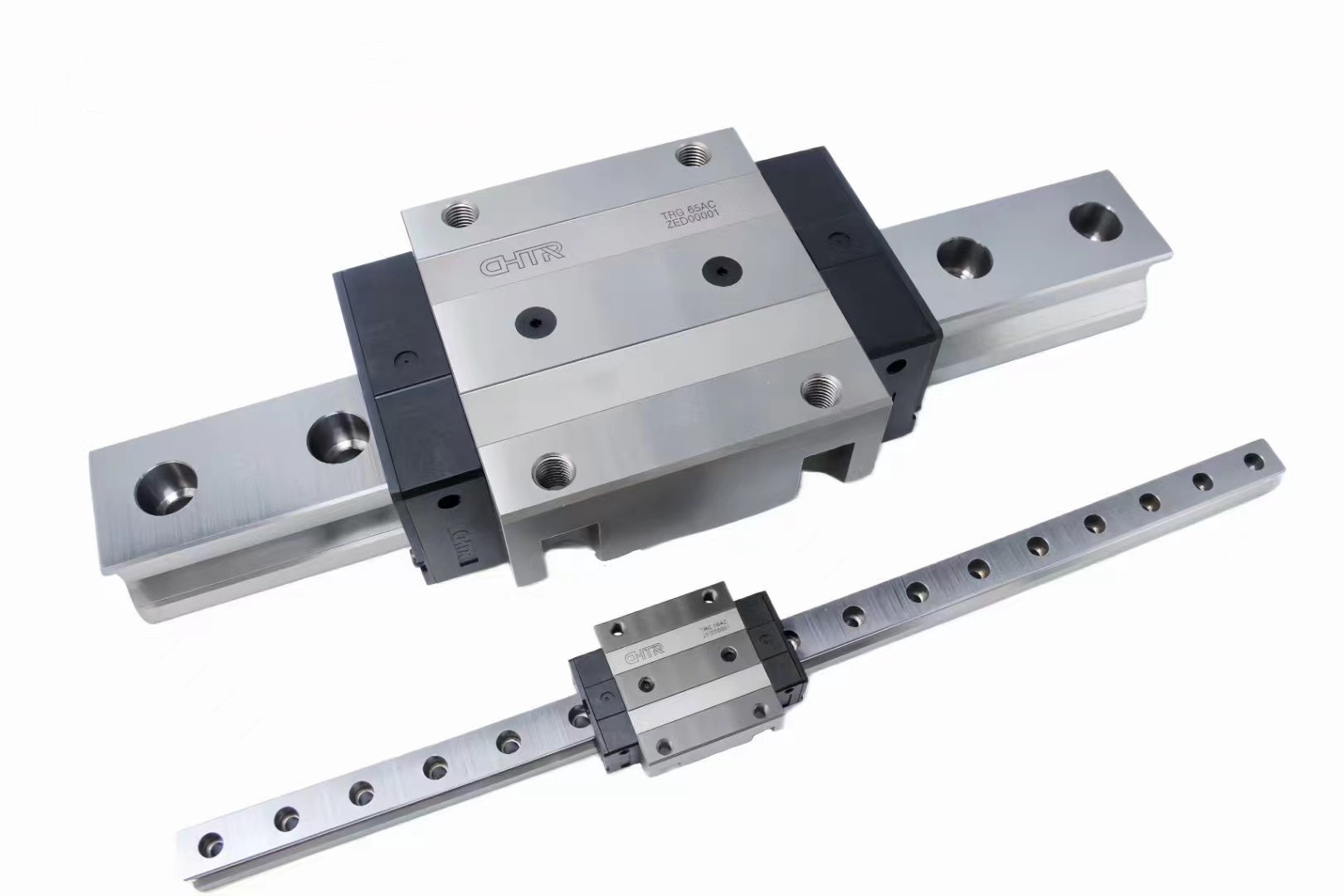

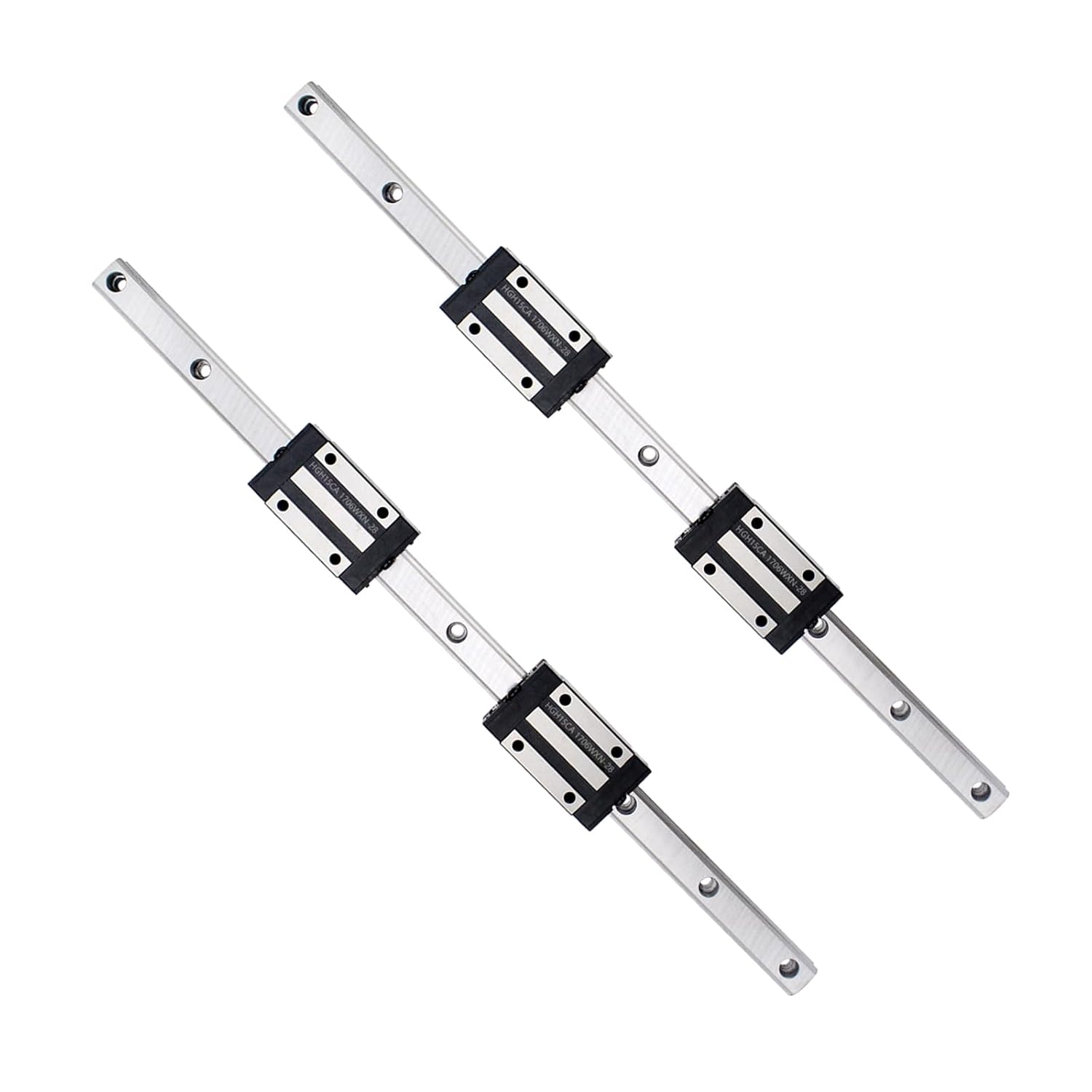

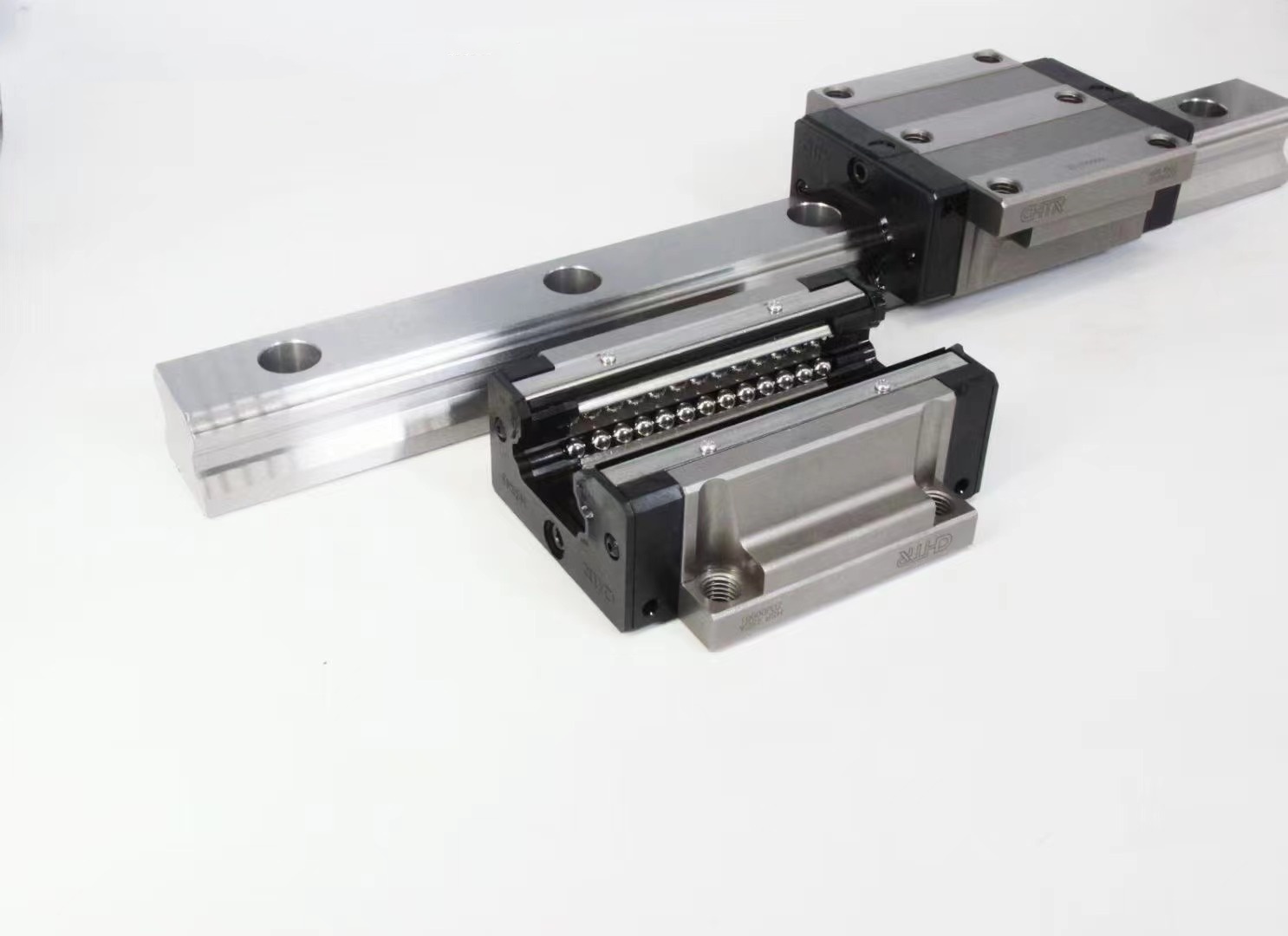

Durable Linearball Bearing Carriages And Guide Rails are heavy load linear guide way designed by circular-arc groove and structure optimization are higher over 30% load capacity and rigidity than other similar ball type linear guideway. Our linear ball bearing slides features the same load in four directions (up/down/right/left) and self-aligning to absorb installation-error capability.
Durable Linear Ball Bearing Carriages And Guide Rails is a reliable and efficient linear motion system used in industrial automation, machine building, and other precision-critical applications. Ball bearing carriages and guide rails are at the heart of this system, ensuring that loads move smoothly and with low friction on the guide rails, resulting in precise linear motion.

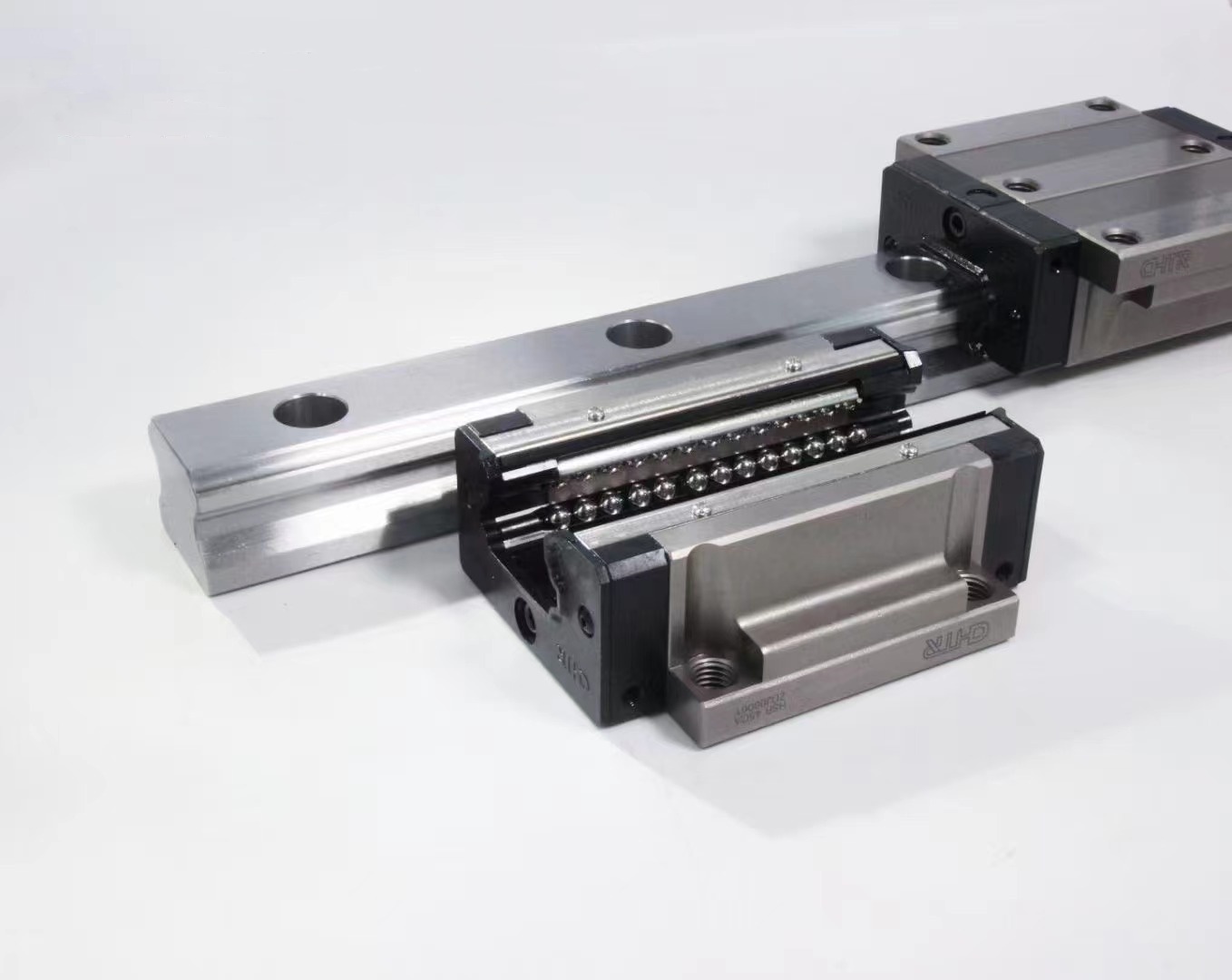

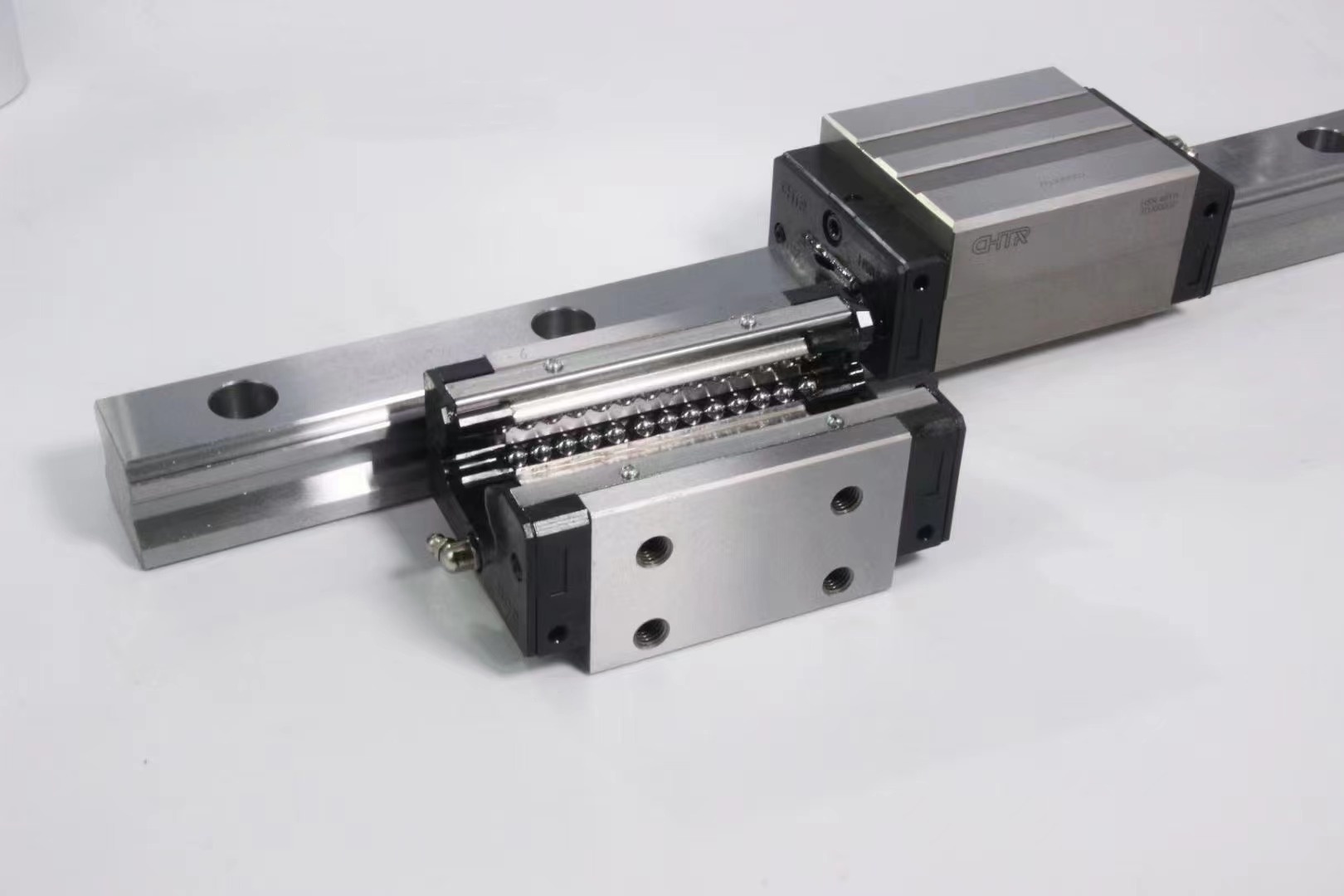

In this system, linear guide bearing (linear ball bearing slides) run smoothly on the guideway by reducing friction and spreading the load through the contact of the linear guide bearing with the linear motion carriages. This design of linear ball bearing slides and linear carriage reduce energy loss, extends the life of the equipment, and linear carriage can be adapted to a wide range of industrial scenarios. Particularly when equipment requires constant repetitive motion, ball bearing slide systems are able to maintain accuracy over long periods of high frequency operation.

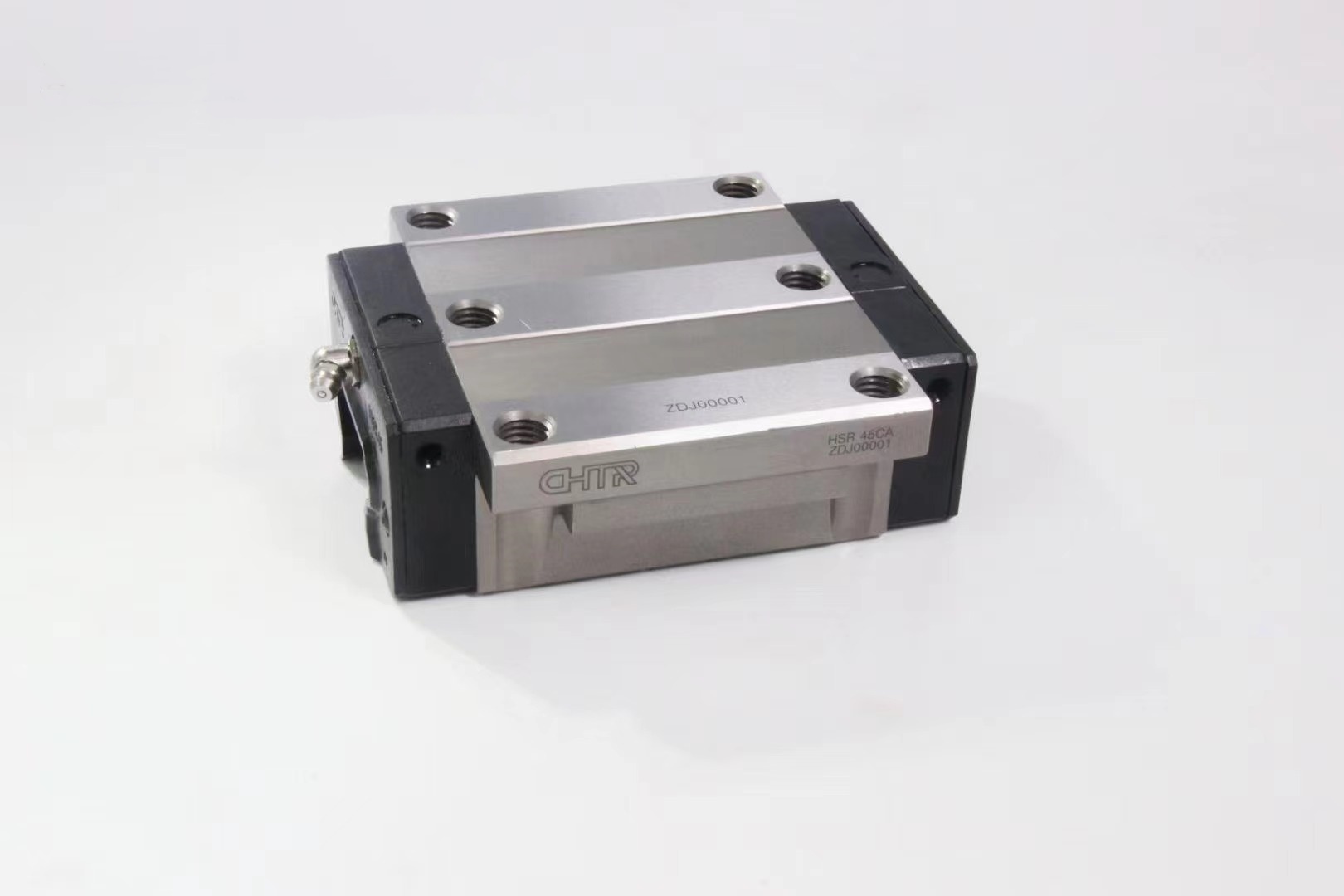

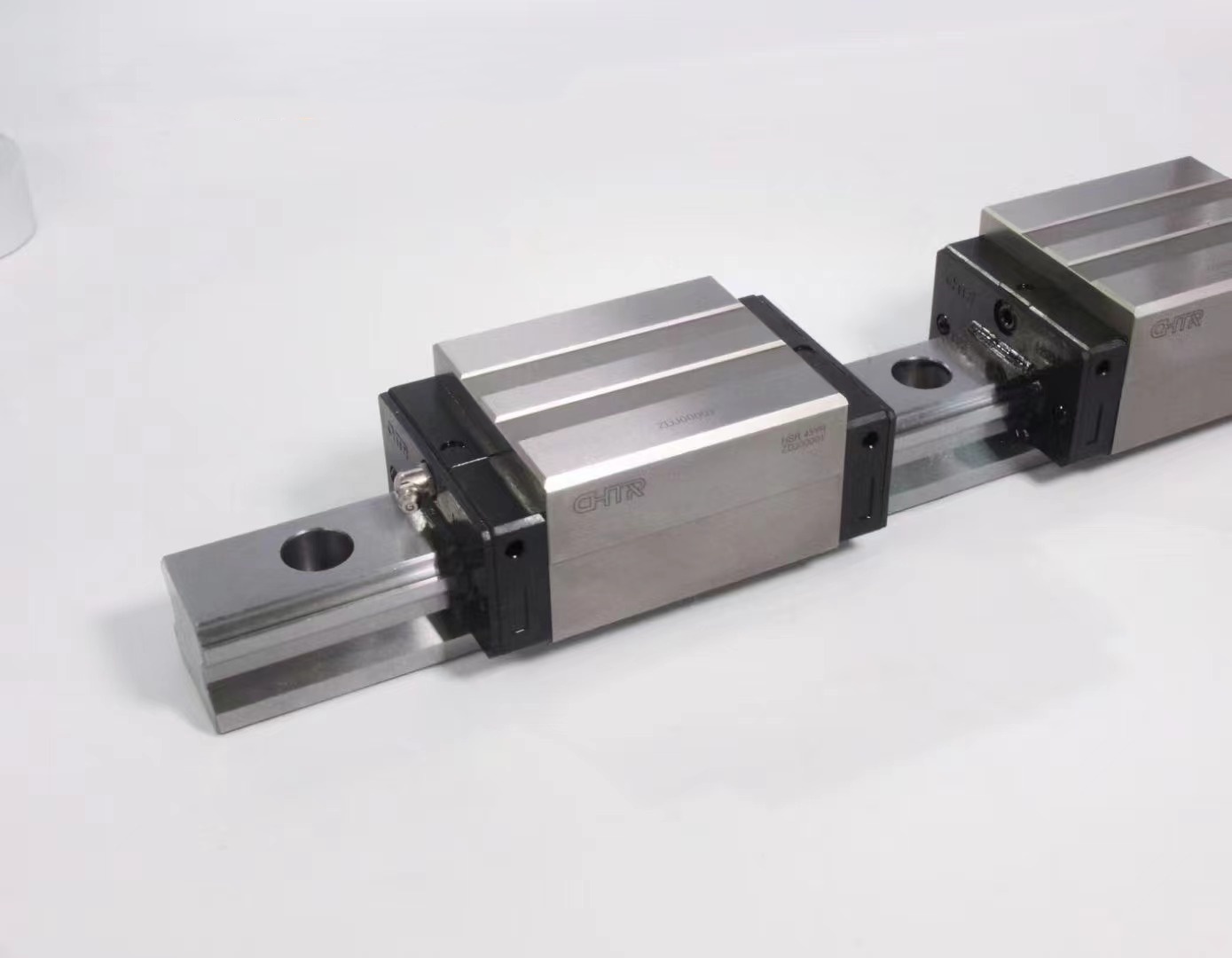

Linear carriages are moving parts mounted on a guideway and linear motion carriages are usually designed for compactness and high load carrying capacity. The linear motion carriages are fitted with multiple ball bearings to maintain smooth movement under high loads and to prevent wear and tear, ensuring reliability over long periods of time. Linear carriage design also makes linear motion carriages easy to install and maintain, and linear carriage can be compatible with many types of guideway system, suitable for all kinds of complex machinery and equipment.
The linear guide bearing is the key support part of the whole system. The linear guide bearing and linear carriage provides a stable movement path for the linear carriage, and its precise manufacturing process ensures that under heavy loads or complex environments, the linear motion carriages can still maintain a stable and efficient linear movement. The combination of guideways and bearings ensures high accuracy during operation and reduces vibration due to friction, thus improving overall stability.
These durable ball bearing slides and guideway systems are capable of long and stable operation in a variety of industrial applications, such as automated production lines, machine tools, medical equipment, and high-precision laboratory equipment. They are not only able to withstand heavy loads, but also have good wear and corrosion resistance, ensuring that the equipment can be maintained in good condition even in complex environments.
Load capacity is determined by dynamic (C) and static (C₀) load ratings. For example: A 6205 deep groove ball bearing has a dynamic load rating of 14 kN, suitable for small motors. For heavy loads, choose tapered roller bearings (e.g., 32208 with C=90 kN). Recommendation: Share your equipment’s load analysis for optimal bearing selection.
Materials: Stainless steel (440C/316) or coatings (nickel plating, DLC). Seals: Double rubber seals (2RS) or PTFE seals. Example: Seawater pumps often use 316 stainless steel bearings with lifelong grease.
Speed limits depend on bearing type and lubrication: Standard 608ZZ ball bearings: ~18,000 rpm. Hybrid ceramic bearings (Si3N4 balls): 30–50% higher speeds. Solution: For high-speed applications, opt for oil lubrication or low-friction design.
Theoretical lifespan: Based on load calculations (see Q1). Real-world factors: Lubrication intervals (e.g., grease replenishment every 100km). Mounting surface flatness (≤0.01mm/m required). Tool: Free lifespan calculation software available.
Must-check: Slider hole spacing (e.g., 45mm×45mm). Rail width (15/20/25mm, etc.). Slider height (impacts machine space). Pro tip: Old slider model numbers are often engraved on the side.
Of course, we provide customized service, including add customers’ logo on the products, customized size of linear guide rail.
It according to the products, we usually can adjust the quantity according to customers’ request.
