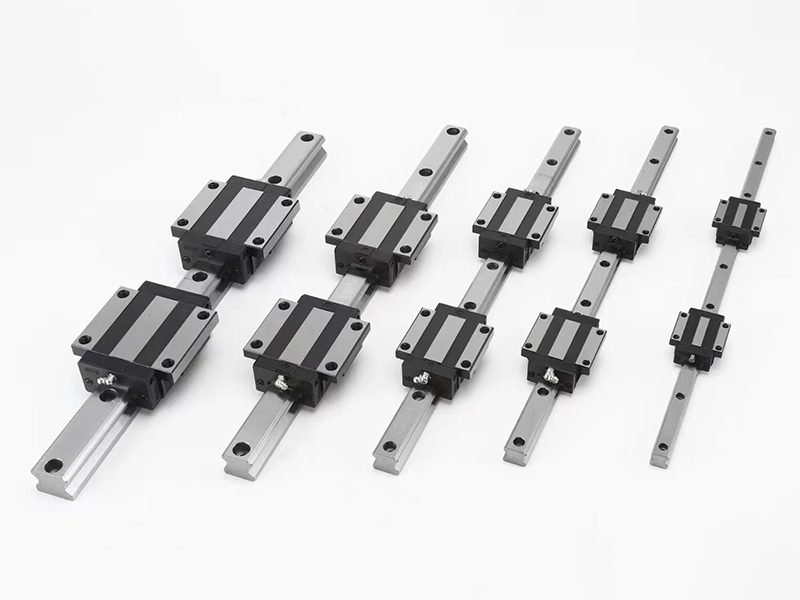

Miniature CNC Linear Guide Rail And Bearing is miniature linear guide , miniature linear bearings and cnc guide rails designed by circular-arc groove and structure optimization are higher over 30% load capacity and rigidity than other similar ball type linear guideway. iniature linear guide features the same load in four directions (up/down/right/left) and self-aligning to absorb installation-error capability.
Miniature CNC Linear Guide Rail And Bearing is a miniature linear guide and miniature linear bearings system specially designed for CNC machines, cnc linear rail and micro linear slide are widely used in automation, precision machining and heavy-duty machinery manufacturing, etc. CNC linear rail, as the core component, ensures precise linear motion of robotic arms, tools and other equipment under high loads, thus enhancing work efficiency and machining accuracy.
Miniature linear guide and cnc linear rail can withstand large loads, and in the high-intensity working environment to maintain stable motion performance. Micro linear slide is usually manufactured using high-strength materials, such as hardened steel or stainless steel, to ensure that the miniature linear guide and micro linear slide have sufficient rigidity, wear resistance and corrosion resistance. This micro linear slide system can not only withstand the mechanical movement of gravity and vibration, but also in the long run to maintain high accuracy, micro linear slide is one of the core components of CNC equipment.
Miniature linear bearings and miniature linear guide are mainly used in small precision equipment and the need for high-precision occasions, such as micro-machinery, medical equipment and laboratory instruments. Despite micro linear slide's small size, miniature linear bearings are not inferior in terms of load carrying capacity and motion accuracy. Micro linear slide reduce sliding friction through their internal ball or roller structure, resulting in smooth, precise motion. These cnc guide rails are not only widely used in small equipment, but are also able to be used in automated control equipment where precision is critical.
CNC guide rails or cnc linear rail are essential components in CNC machines, ensuring precise and reliable linear motion. CNC guide rails or cnc linear rail are designed to maintain high accuracy and stability, even under heavy loads and high speeds. The geometric accuracy of the cnc linear rail, contact accuracy, and rigidity all contribute to the overall precision of the machine.
Miniature linear guide is an indispensable part of the miniature equipment. Cnc guide rails' design is exquisite, compact structure, can be in a limited space to achieve efficient linear motion. The high-precision manufacturing process of cnc guide rails ensures that cnc linear rail can operate stably in a variety of complex environments with simple maintenance and low cost, making these cnc linear rail an ideal choice for high-precision equipment.
Cnc linear rail systems combine the load-carrying capacity of miniature linear bearings and micro linear slide with the precision of miniature cnc guide rails for a wide range of application scenarios, from large CNC machine tools to small automation equipment. The high load carrying capacity and precision of these cnc guide rails and bearing systems give the cnc linear rail an irreplaceable advantage in complex machine movements and machining operations.
Load capacity is determined by dynamic (C) and static (C₀) load ratings. For example: A 6205 deep groove ball bearing has a dynamic load rating of 14 kN, suitable for small motors. For heavy loads, choose tapered roller bearings (e.g., 32208 with C=90 kN). Recommendation: Share your equipment’s load analysis for optimal bearing selection.
Materials: Stainless steel (440C/316) or coatings (nickel plating, DLC). Seals: Double rubber seals (2RS) or PTFE seals. Example: Seawater pumps often use 316 stainless steel bearings with lifelong grease.
Speed limits depend on bearing type and lubrication: Standard 608ZZ ball bearings: ~18,000 rpm. Hybrid ceramic bearings (Si3N4 balls): 30–50% higher speeds. Solution: For high-speed applications, opt for oil lubrication or low-friction design.
Theoretical lifespan: Based on load calculations (see Q1). Real-world factors: Lubrication intervals (e.g., grease replenishment every 100km). Mounting surface flatness (≤0.01mm/m required). Tool: Free lifespan calculation software available.
Must-check: Slider hole spacing (e.g., 45mm×45mm). Rail width (15/20/25mm, etc.). Slider height (impacts machine space). Pro tip: Old slider model numbers are often engraved on the side.
