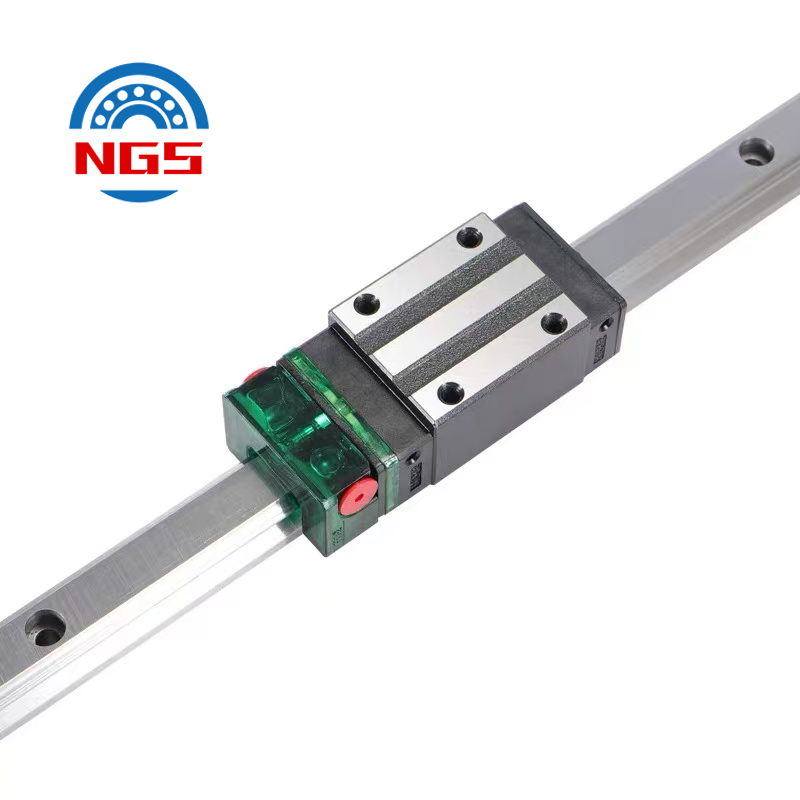

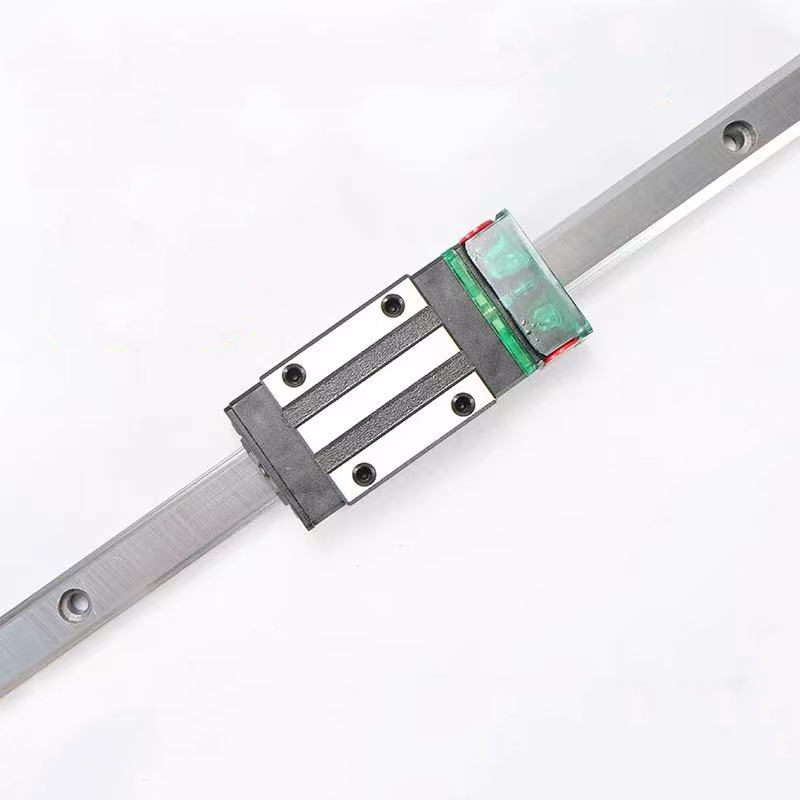

The linear rail system is the cornerstone for achieving high-precision, high-rigidity linear motion. As the key load-bearing component within this linear rail system, the performance and longevity of the linear guide block or linear slides directly impact the entire equipment's reliability and accuracy retention. Among the various types of linear slides, the design featuring an integrated oil hole or reservoir - self-lubricating linear guideway or self-lubricating linear slides stands out.
A linear guide block with an oil hole is not merely a mechanical component; it is a thoughtfully engineered solution that integrates the lubrication system directly with the moving parts, providing core advantages for any linear rail system.
1.1 Superior Lubrication Efficiency and Friction/Wear Control
The core mission of any linear rail system is to achieve precise motion with minimal friction. Self-lubricating linear slides with integrated oil holes utilize internal passages to deliver lubricant directly and uniformly from a central reservoir to the contact points between the balls (or rollers) and the raceways. This targeted lubrication ensures:
Comprehensive Coverage: Lubricant reaches all critical friction pairs that are difficult to access manually, preventing localized wear and pitting caused by uneven lubrication.
Contaminant Exclusion: As grease is forced in, it creates an effective sealing barrier that helps prevent external contaminants such as dust, metal chips, and corrosive liquids from entering the block interior. This is crucial for maintaining the precision and lifespan of the linear guide block.
Minimized Wear: A consistent and sufficient oil film separates the rolling elements from the raceways, significantly reducing direct metal-to-metal contact, thereby minimizing wear. This directly extends the overhaul cycle and service life of the entire linear rail system.
1.2 Simplified Maintenance and Cost-Effectiveness
Conventional linear slides often require specialized grease guns and the location of often hidden grease fittings, a process that is cumbersome and easy to overlook.
Preventive Maintenance: This self-lubricating linear guideway approach is an ideal solution for low-cost preventive maintenance strategies.
1.3 Enhanced Reliability in Diverse Operating Environments
While fully automated centralized lubrication systems exist, they add complexity and cost. performance and practicality.
Versatility: They perform reliably across a wide range of speeds and loads that characterize common industrial applications.
Robustness: The design is mechanically simple, with no small moving parts that can fail, unlike some automated systems. The reliability of the linear rail system is thus maintained.
Adaptability: These linear guide blocks can be effectively used in environments where space constraints or cost factors preclude the installation of a centralized system. They bring essential self-lubricating linear guideway or self-lubricating linear slides functionality to a broader range of machinery.
In summary, the incorporation of an oil hole transforms a standard linear guide block into a more intelligent, maintenance-friendly, and durable component, forming the foundation of a highly reliable linear rail system.
Understanding these options is key when selecting the right self-lubricating linear slides for your application.
2.1 Standard Grease Fitting (Oil Hole)

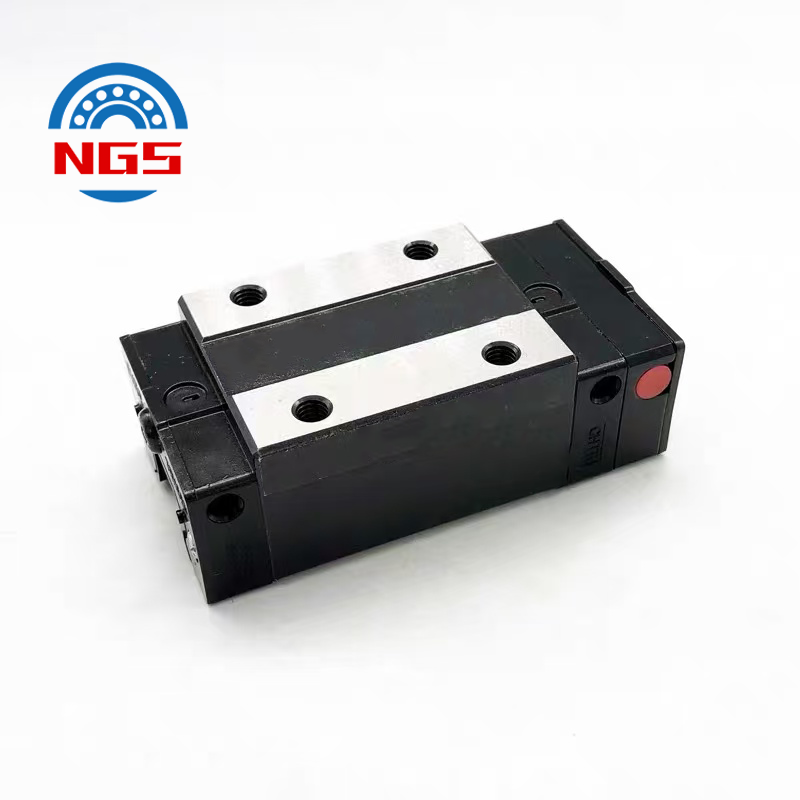

This is the most basic form, typically a threaded hole on the top or side of the linear guide block designed to accept a standard grease nipple or a needle adapter from a grease gun.
2.2 Integrated Oil Reservoir (Oil Cup)
This is a significant upgrade, featuring a small, transparent (often plastic) reservoir tank screwed directly into the linear guide block.
2.3 Pressurized Grease Reservoir (One-Shot Cartridge)
Some high-end self-lubricating linear guideway or self-lubricating linear slides systems are designed to accept a small, disposable grease cartridge.
2.4 Advanced Self-Lubricating Systems
Beyond simple oil holes, some linear guide blocks are part of a more advanced self-lubricating linear guideway system. These may include:
Porous Polymer Plugs: These plugs, installed in the oil hole, are impregnated with lubricant. They act as a controlled-release mechanism, supplying a steady, minute amount of lubricant over a very long period, creating a truly semi-permanent self-lubricating linear slides solution.
Selection Criteria for Lubrication Type:
Lubricant Type
Maintenance Interval
Environmental Conditions
Space Constraints
Choosing the correct lubrication option is as important as selecting the linear guide block itself, as it ensures the long-term health of your linear rail system.
Self-lubricating linear slides or linear rail system with oil holes are ubiquitous in industries where reliability, precision, and manageable maintenance are paramount.
3.1 Machine Tool and Automation Industry
This is the primary domain for precision linear rail system components.
CNC Machining Centers: Used in auxiliary axes such as tool changers, automatic pallet changers, and door actuators. These mechanisms may not run continuously but require absolute reliability and precision, which is ensured by the self-lubricating linear guideway blocks.
CNC Lathes and Mills: Applied in tailstocks, chip conveyors, and on sliding covers. The linear guide block here must withstand vibration and intermittent heavy loads.
3.2 Electronics and Semiconductor Manufacturing
In this ultra-precise sector, cleanliness and accuracy are non-negotiable.
PCB Drilling and Routing Machines: The high-speed spindles are frequently mounted on a robust linear rail system.
Surface Mount Technology (SMT) Pick-and-Place Machines: The linear slides that move the placement head require smooth, consistent motion to achieve high placement accuracy.
Wafer Handling and Inspection Equipment: Self-lubricating linear guideway or linear slides systems ensure that robotic arms and vision systems move without stiction or chatter, which could lead to costly product damage.
3.3 Packaging, Food, and Beverage Machinery
Hygiene and reliability under continuous operation are critical here.
Filling and Capping Machines: Linear guide blocks control the movement of filling nozzles and capping heads.
Cartoning and Wrapping Machines: The complex motions involved in folding and sealing packages are often driven by precise linear slides.
3.4 Medical and Laboratory Equipment
This field demands quiet, clean, and fail-safe operation.
Medical Analyzers: Automated sample handling and reagent dispensing within diagnostic machines rely on precise linear rail system or linear slides movements.
Patient Positioning Systems: Modern surgical tables and MRI beds use linear guide blocks for smooth and stable adjustment. The self-lubricating feature ensures quiet and maintenance-free operation in critical environments.
3.5 General Industrial and Logistics Applications
Automated Storage and Retrieval Systems (AS/RS): The shuttles that run up and down the aisles use heavy-duty linear slides to carry loads. Easy maintenance via oil holes is essential for maximizing uptime.
Printing and Paper Converting Machinery: Linear guide blocks are used in print head carriers and cutting units, where they are exposed to paper dust but must maintain precision.
In essence, wherever there is a need for controlled, repeatable linear motion outside of extreme, continuous high-speed or ultra-heavy-duty applications, self-lubricating linear slides with oil holes provide an optimal and economical solution.
The integration of an oil hole or reservoir is a deceptively simple yet profoundly effective innovation in the design of linear slides. It elevates a standard linear guide block into a core component of a reliable, easy-to-maintain self-lubricating linear guideway. Designers and maintenance engineers can fully leverage the potential of these self-lubricating linear slides to build machinery that is not only precise and powerful but also durable and cost-effective over its entire operational life. The linear rail system, empowered by a well-maintained linear guide block, remains an indispensable technology driving innovation and efficiency across global industry.
Load capacity is determined by dynamic (C) and static (C₀) load ratings. For example: A 6205 deep groove ball bearing has a dynamic load rating of 14 kN, suitable for small motors. For heavy loads, choose tapered roller bearings (e.g., 32208 with C=90 kN). Recommendation: Share your equipment’s load analysis for optimal bearing selection.
Materials: Stainless steel (440C/316) or coatings (nickel plating, DLC). Seals: Double rubber seals (2RS) or PTFE seals. Example: Seawater pumps often use 316 stainless steel bearings with lifelong grease.
Speed limits depend on bearing type and lubrication: Standard 608ZZ ball bearings: ~18,000 rpm. Hybrid ceramic bearings (Si3N4 balls): 30–50% higher speeds. Solution: For high-speed applications, opt for oil lubrication or low-friction design.
Theoretical lifespan: Based on load calculations (see Q1). Real-world factors: Lubrication intervals (e.g., grease replenishment every 100km). Mounting surface flatness (≤0.01mm/m required). Tool: Free lifespan calculation software available.
Must-check: Slider hole spacing (e.g., 45mm×45mm). Rail width (15/20/25mm, etc.). Slider height (impacts machine space). Pro tip: Old slider model numbers are often engraved on the side.
Of course, we provide customized service, including add customers’ logo on the products, customized size of linear guide rail.
It according to the products, we usually can adjust the quantity according to customers’ request.
